Description:

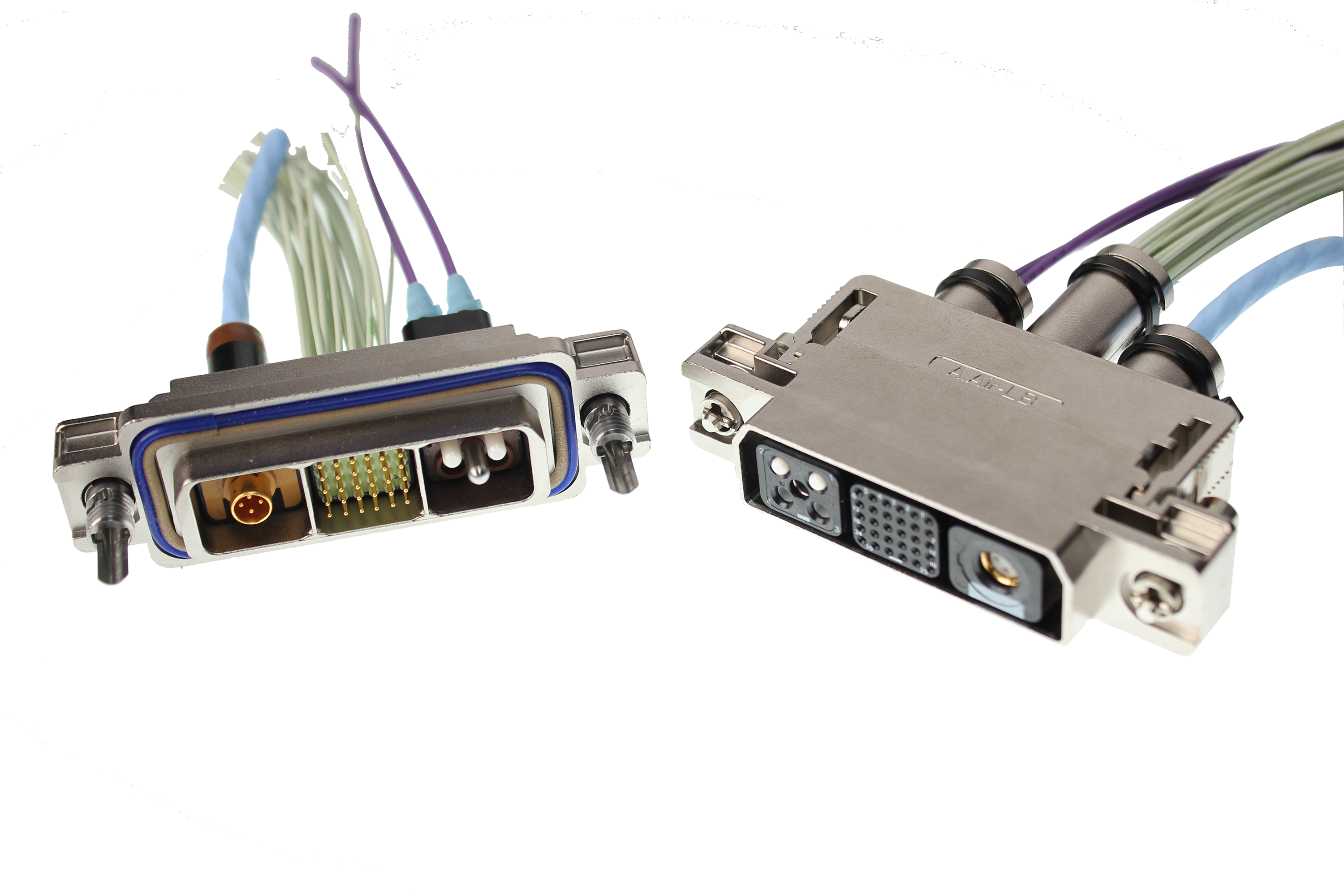

1900SIM is a rectangular, modular and sealed connector, in lightweight composite, without plating or metallized (different plating’s are available). Its shells are derived from the legacy EN3545 (same center distance and fixing system). It consists of a plug, a receptacle (with or without flange) and rear clip-in accessories. 2 Locking / Polarizing systems are available (1/4 Turn and Standard by screw) ensuring 36 keying positions. Using SIM modules in with overmolded silicone technology, 1900SIM offers excellent dielectric and sealing performances ideal for railway and mass transit applications.

Features & Benefits:

  • Shell Materials - Comes in Thermoplastic with plating options in Nickel, Olive Drab Cadmium, Zinc Nickel, or without plating.

  • All connector shells and modules are conformed to the REACH spec.

  • All connector shells are conformed to the RoHS spec (except with Olive Drab Cadmium plating).

  • Operating temperature -55° to +175°C continuously.

  • Sealing: IP66, Space efficient & modular design

  • Lightweight and robust

  • Compliant with NFF 61-030 standard

  • Fire/Smoke/Toxicity conform to EN45545 (HL3 R22)
