M12883 Qualified Relay Sockets
Contact:
Samantha Bergstrom
Product Specialist
(978) 882-3815
produced@amphenolpcd.com
Ashley Adams
Marketing Specialist
(978) 880-4048
produced@amphenolpcd.com
Contact Us to Learn More
Description:

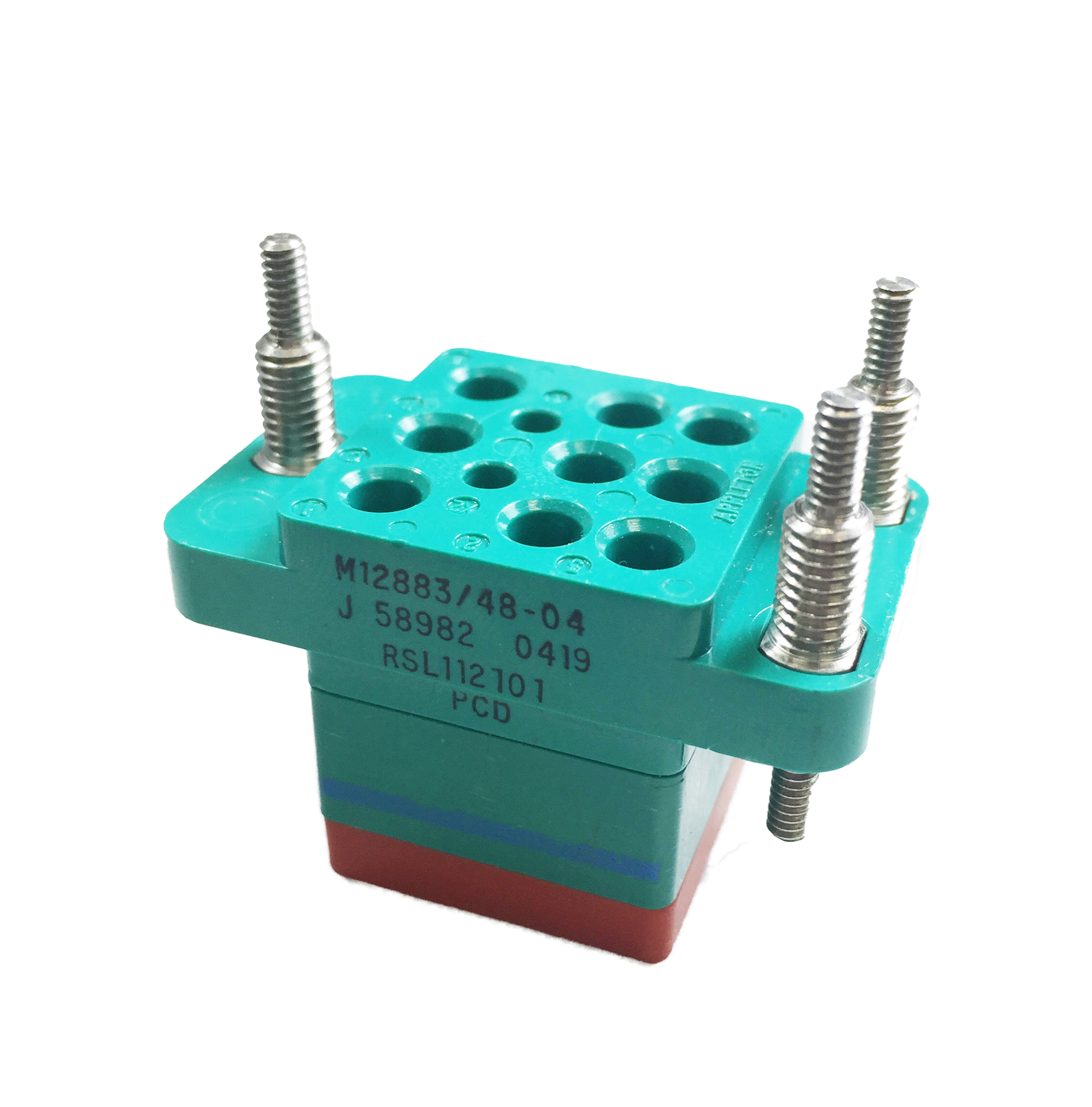

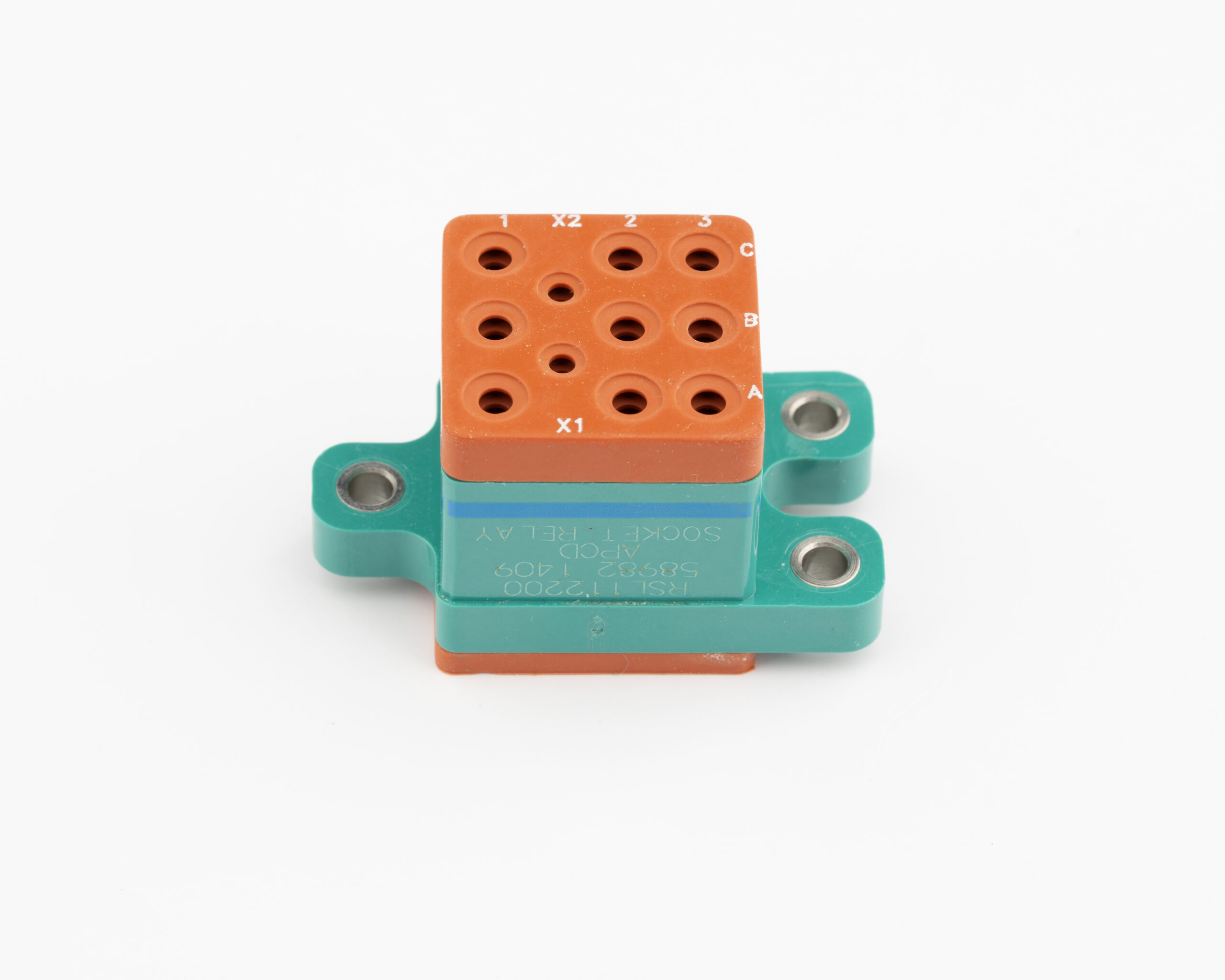

Amphenol PCD’s Relay Sockets are qualified to MIL-PRF-12883 specification and have an amp range between 2 and 25. Offered in various types and configurations, they feature state of the art ultrasonically bonded interfaces between the dialectric components, eliminating air paths and providing protection against moisture and degradation.
Features & Benefits:
-

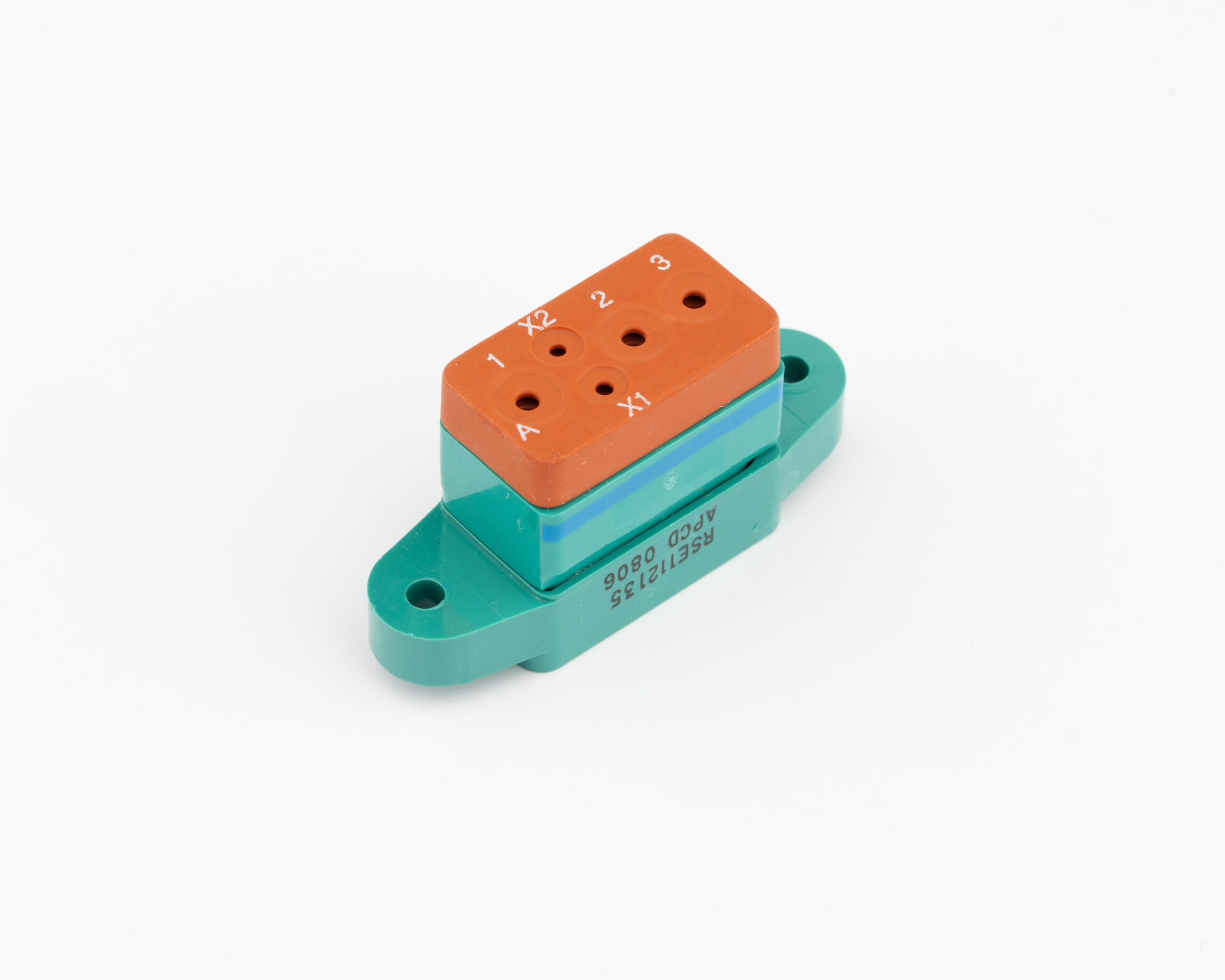

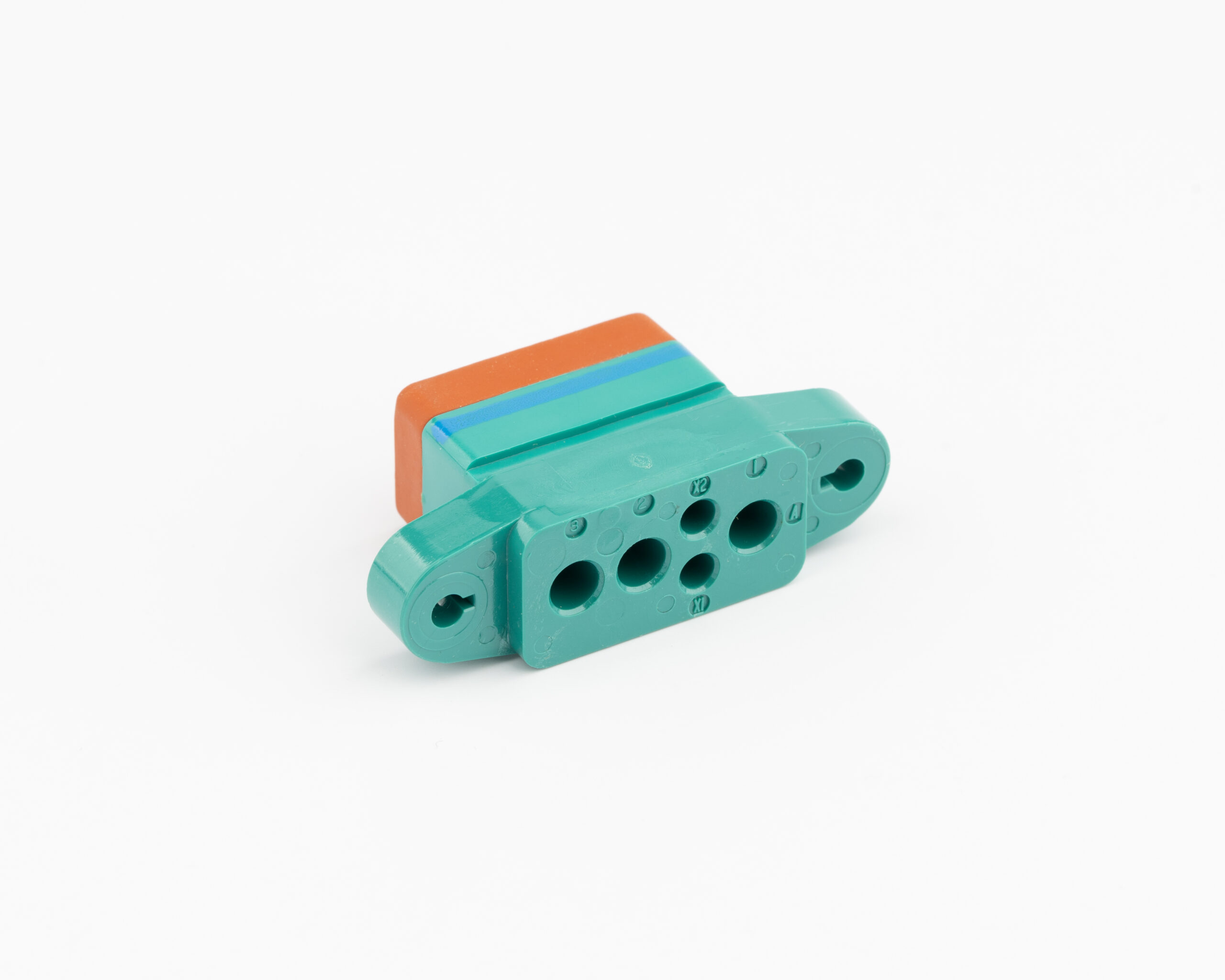

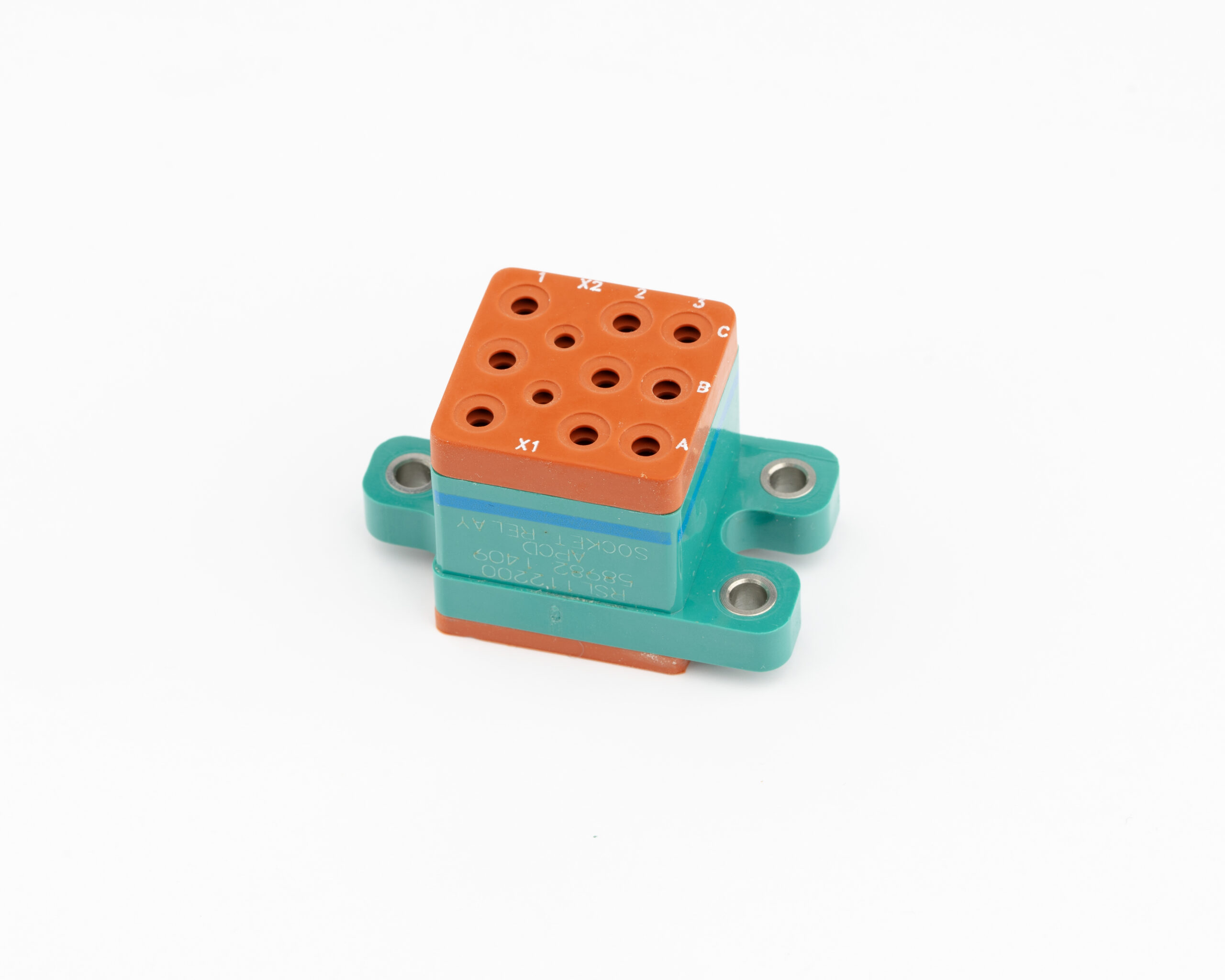

Low profile-available in all military configurations; configured to a minimum size & weight & accept the MIL-C-39029/29 contact family
-
Extended profile allows for contact standardization; configured to accept the longer MIL-C-39029/5 contact
-

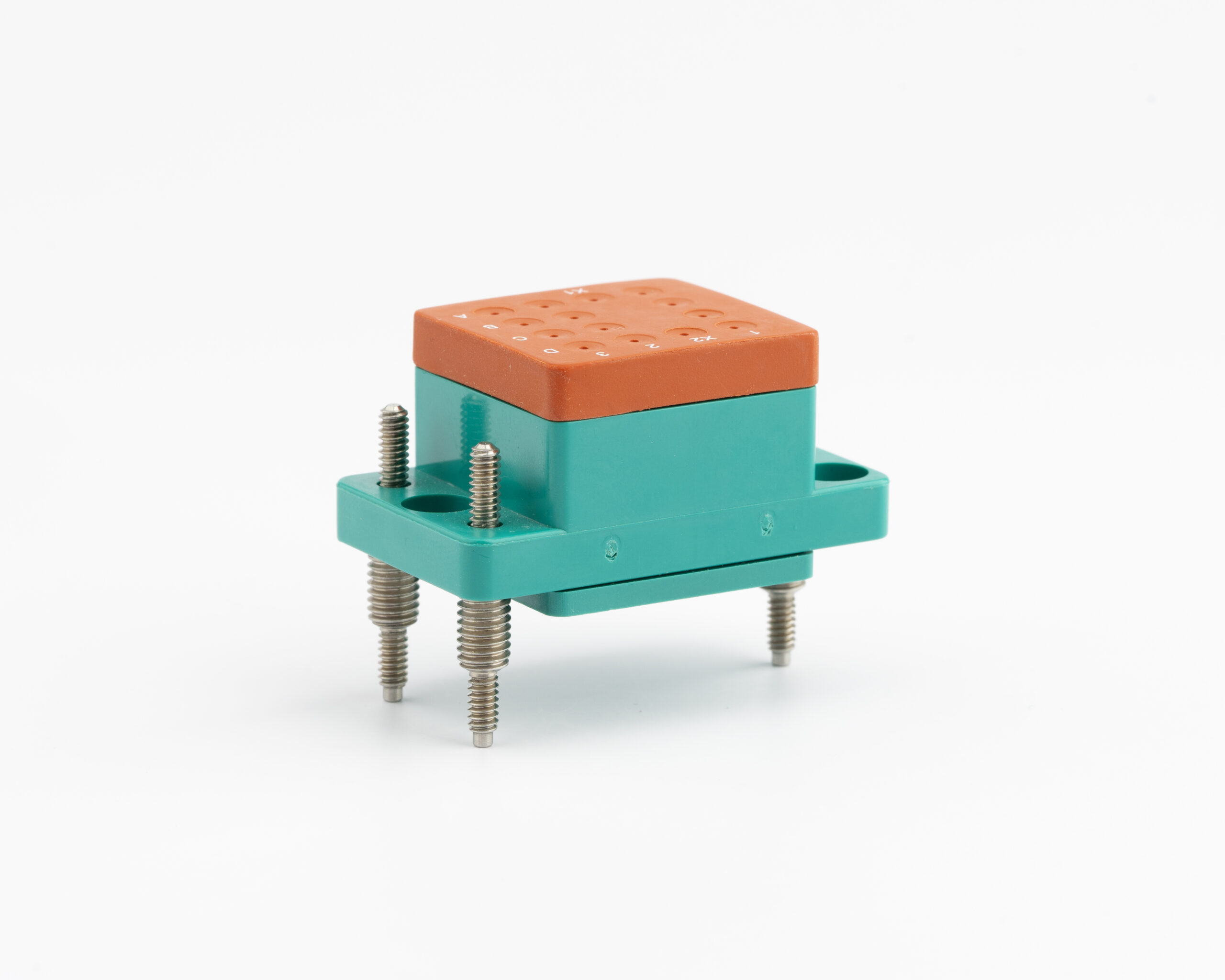

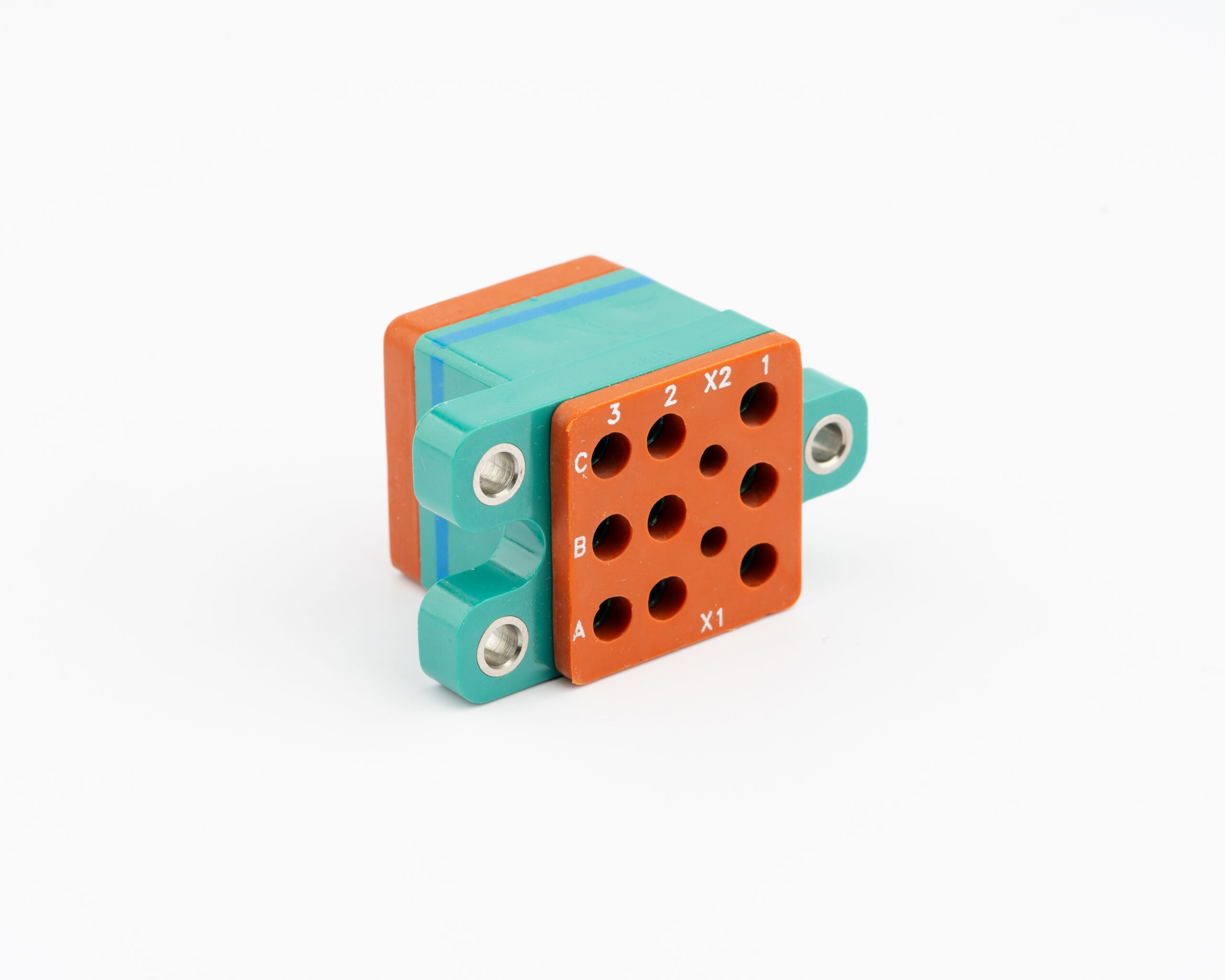

Sockets available with fixed or loose mounting studs; can be top or bottom mounted
-
Designed for MIL-C-39029 contacts; standardization simplifies product
-

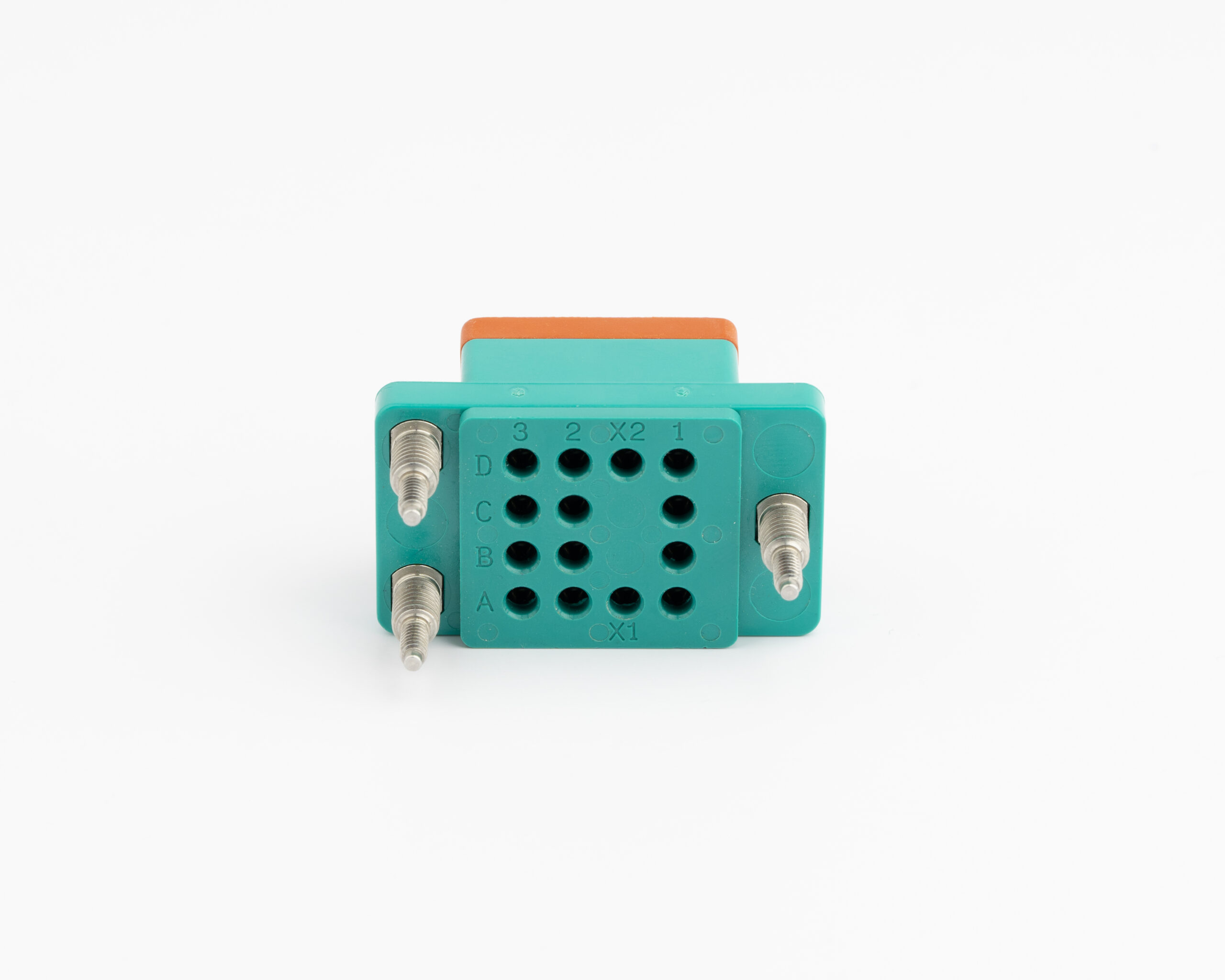

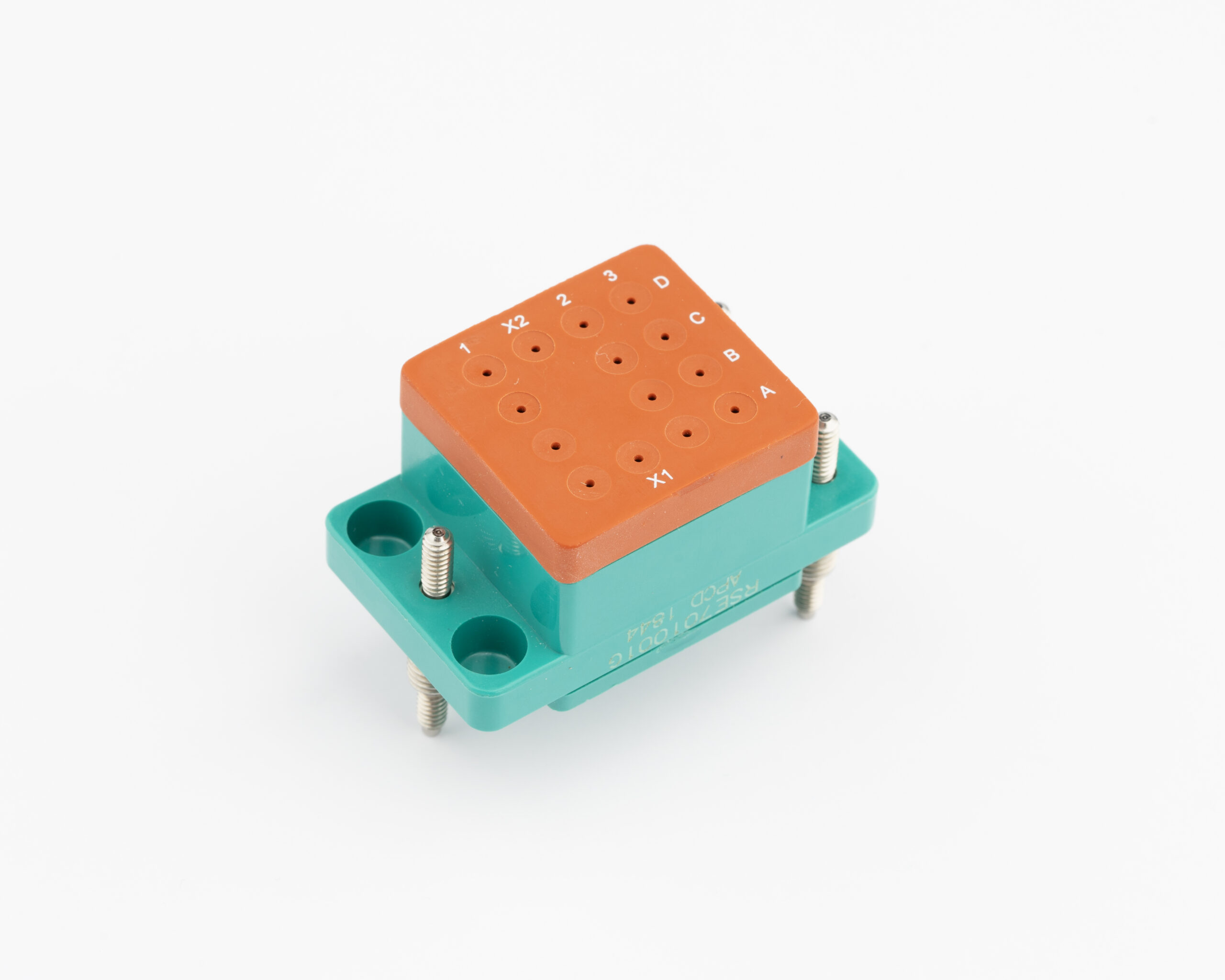

Polarization in accordance with MIL Spec requirements; provided by specific contact configuration and/or polarizing pins
-
Commercial Verisons also available
Temperature | -65°C to 125°C |
Insulation Resistance | 1000 Megohms Min. |
Vibration | MIL-STD-202, Method 204 Test Condition G |
Shock | MIL-STD-202, Method 213 Test Condition C |
Socket Body | Polyetherimide per ASTM-D5205 |
Grommet | Silicone Rubber per A-A-59588 |
Hardware | Stainless Steel or Steel w/Cadmium Chromate Finish |
Contact Retainers | Stainless Steel |
Socket Contacts | Copper Alloy, Hard Gold Finish per SAE-AMS-2422 |
Dielectric Withstanding Voltage Rating @ Sea level M12883/44, /45 | 1000 |
Dielectric Withstanding Voltage Rating @ Sea level/46, /56 | 1250 |
Dielectric Withstanding Voltage Rating @ Sea level M12883/40, /41, /47 , /48, /52, /53, /54, /55 | 1500 |
Dielectric Withstanding Voltage Rating @ 80,000 ft M12883/40, /41, /44, /45, /46, /47, /48, /54, /55, /56 | 500 |
Dielectric Withstanding Voltage Rating @ 80,000 ft M12883/52, /53 | 700 |
