Relay Sockets

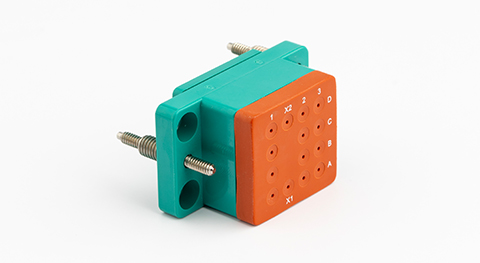

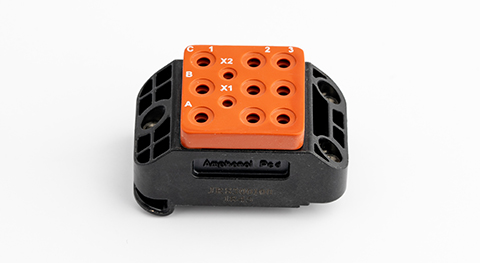

Amphenol Pcd’s Relay Sockets are qualified to MIL-PRF-12883 specifications and have an amp range between 2 and 25. Offered in various types and configurations, they feature state of the art ultrasonically bonded interfaces between the dielectric components, eliminating air paths and providing protection against moisture and degradation. Our Quick Mount Relay Sockets snap into standard aircraft panel cutouts eliminating the need of mounting hardware. This simplifies installation and dramatically reduces weight and installation time. They meet the performance of MIL-PRF-12883 and are compatible with MIL-SPEC approved relays.

Applications: Lighting, IFE and Galley, Avionic Control, Instrumentation, Aircraft Power Distribution, Sealed Interface for Electromechanical Relays – Military Vehicles, Aircraft, Avionic Systems
