Quick Mount Relay Sockets
Contact:
Samantha Bergstrom
Product Specialist
(978) 882-3815
produced@amphenolpcd.com
Ashley Adams
Marketing Specialist
(978) 880-4048
produced@amphenolpcd.com
Contact Us to Learn More
Description:

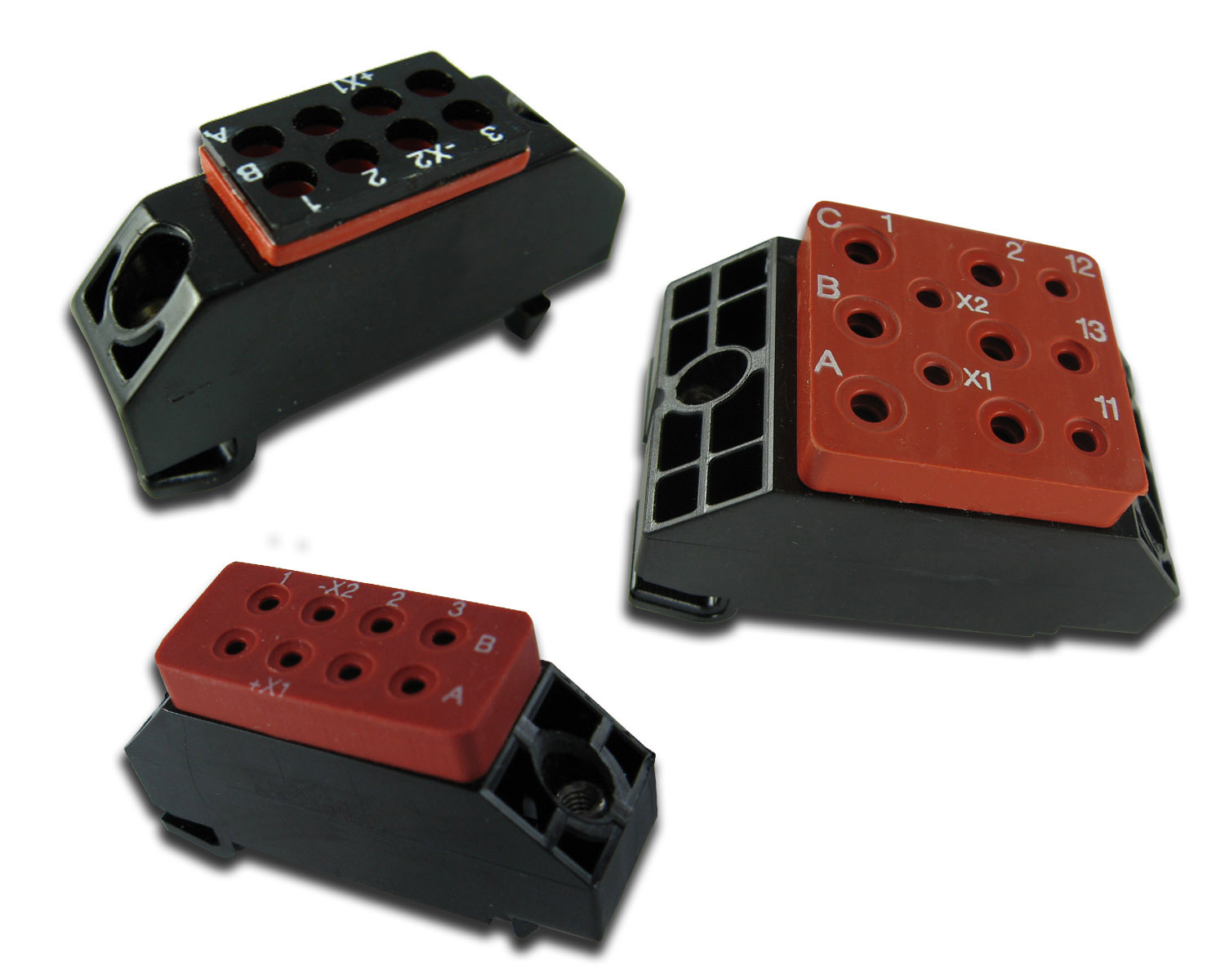

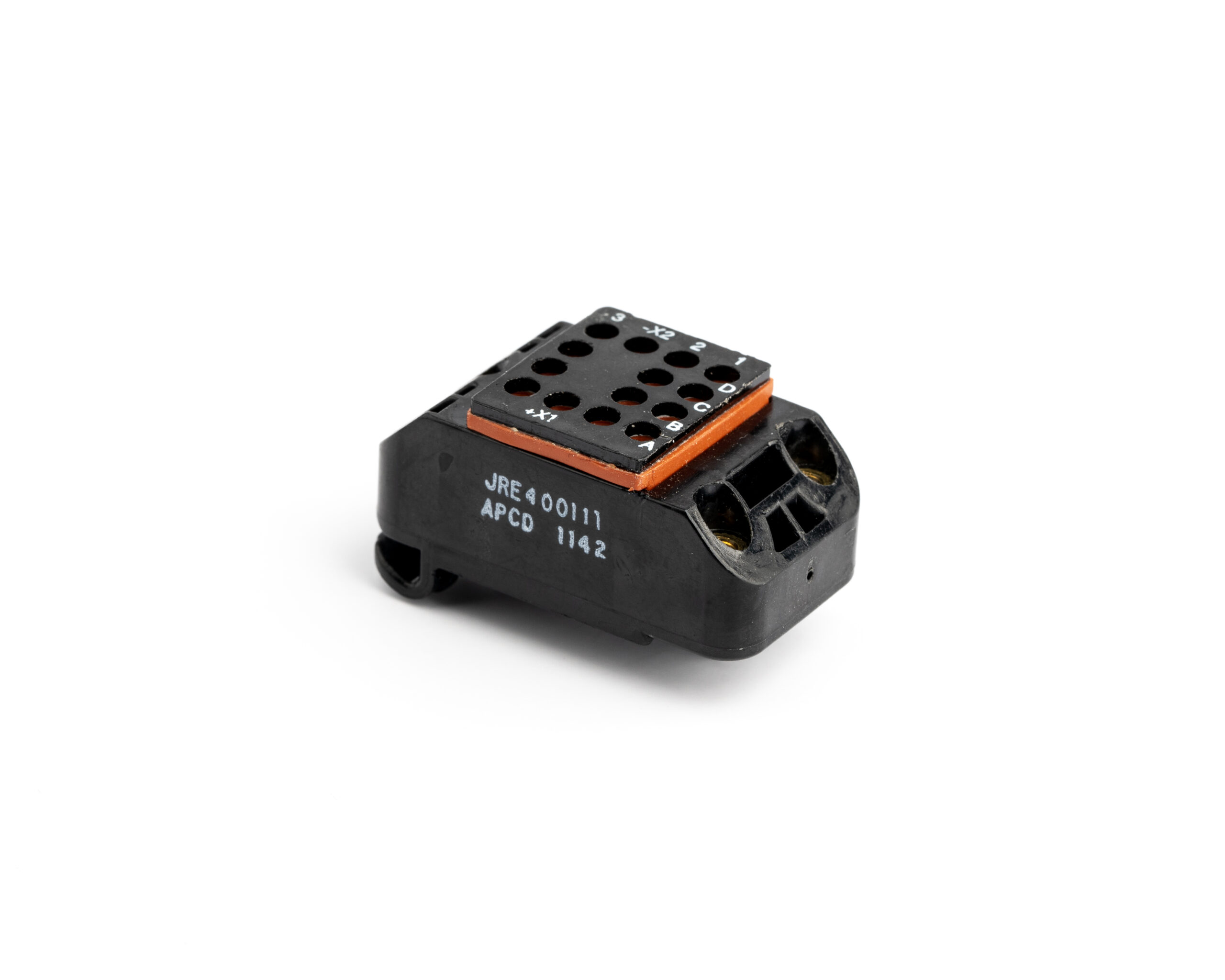

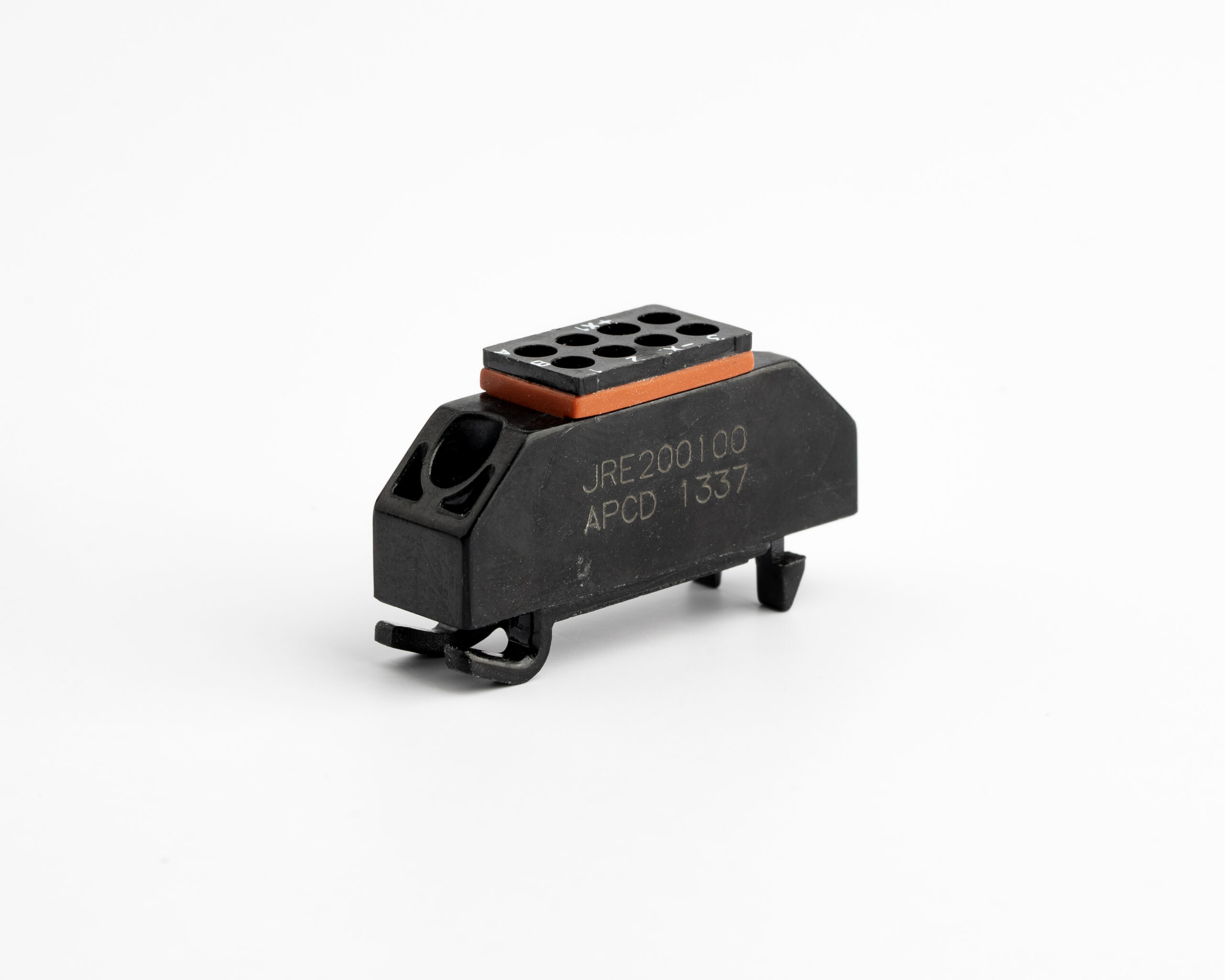

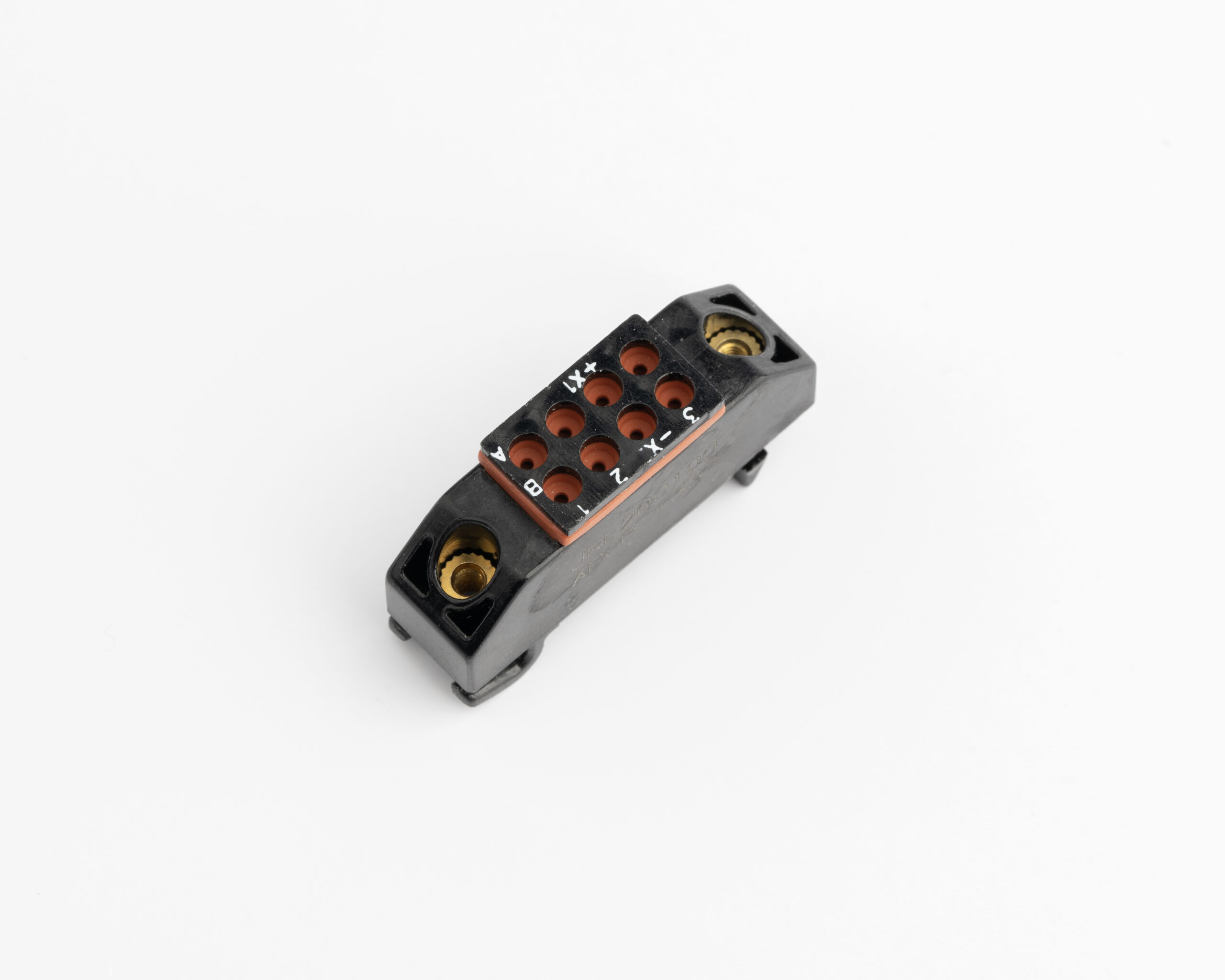

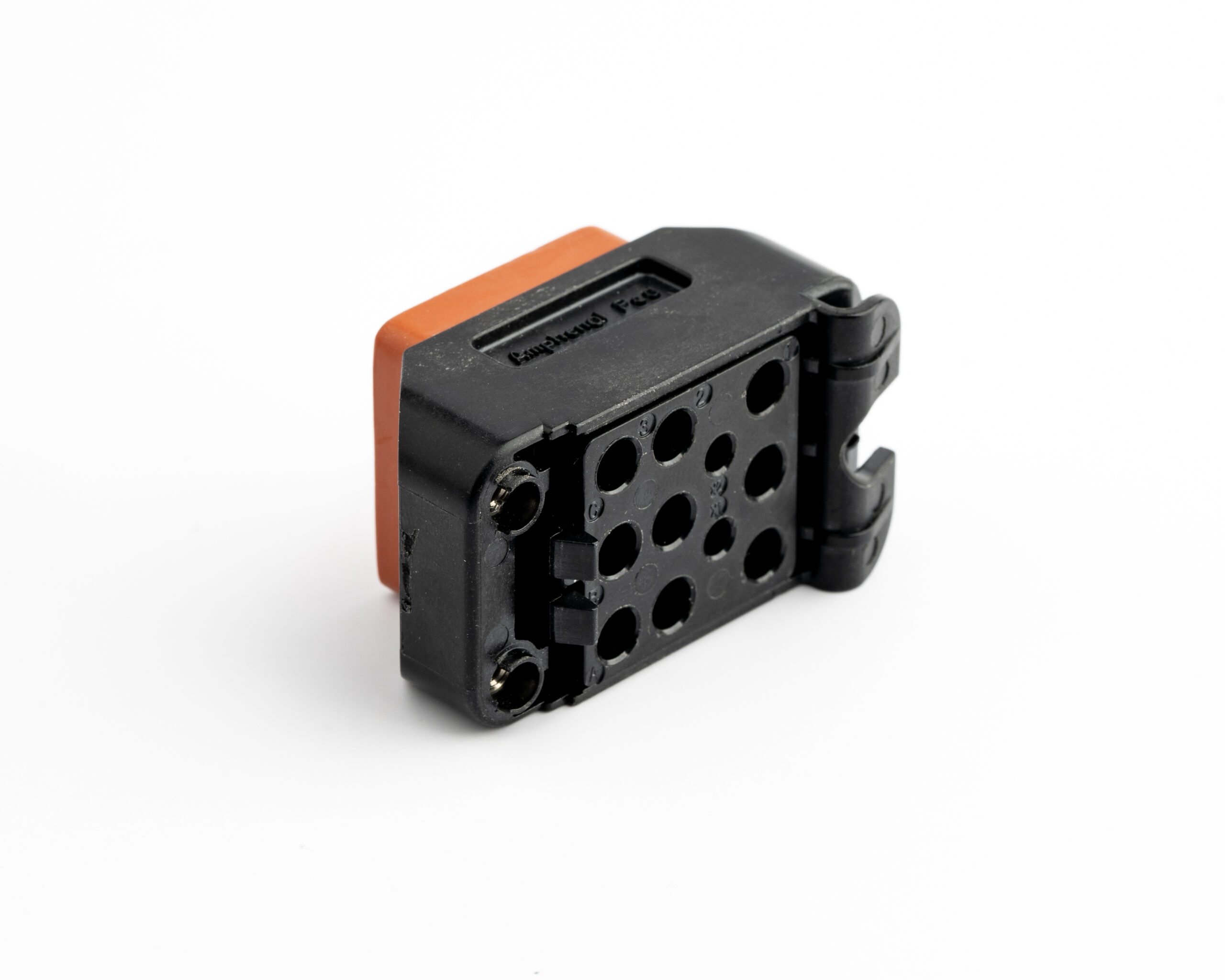

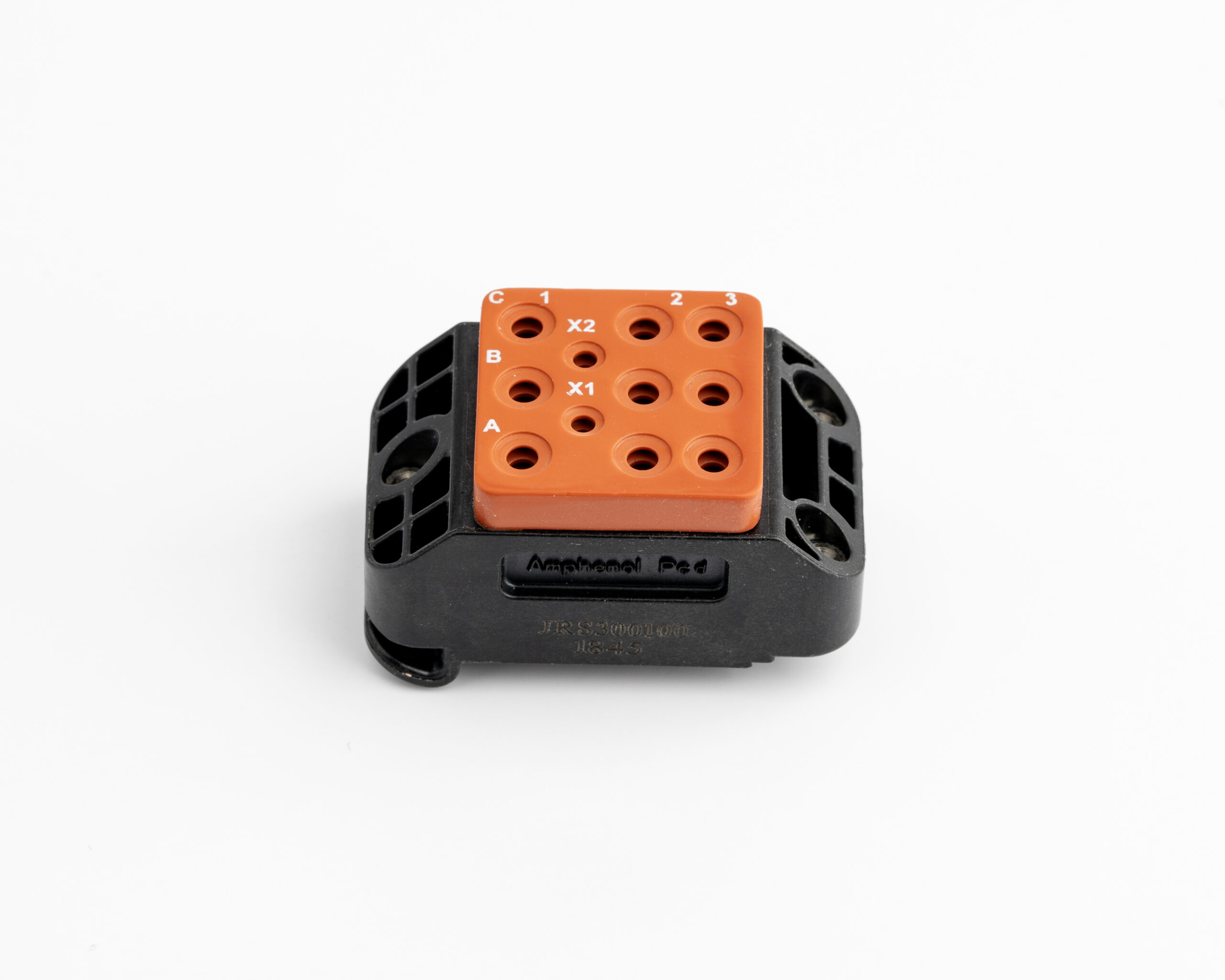

Quick-Mount Relay Sockets snap into standard aircraft panel cutouts eliminating the need of mounting hardware, saving weight and installation time.
Temperature | -65°C to 125°C |
Insulation Resistance | 1000 Megohms Min. |
Vibration | MIL-STD-202, Method 204 Test Condition G |
Shock | MIL-STD-202, Method 213 Test Condition C |
Socket Body | Polyetherimide per ASTM-D5205 |
Grommet | Silicone Rubber per A-A-59588 |
Hardware | Stainless Steel or Steel w/Cadmium Chromate Finish |
Contact Retainers | Stainless Steel |
Socket Contacts | Copper Alloy, Hard Gold Finish per SAE-AMS-2422 |
Dielectric Withstanding Voltage Rating @ Sea level (JRE400XXX, JRE200XXX) | 1000 |
Dielectric Withstanding Voltage Rating @ Sea level (JRE100XXX) | 1250 |
Dielectric Withstanding Voltage Rating @ Sea level (JRS400XXX, JRS200XXX, JRS600XXX, JRS300XXX, JRS310XXX, JRS500XXX) | 1500 |
Dielectric Withstanding Voltage Rating @ 80,000 | 500 |
