Velok
Contact:
Samantha Bergstrom
Product Specialist
(978) 882-3815
produced@amphenolpcd.com
Ashley Adams
Marketing Specialist
(978) 880-4048
produced@amphenolpcd.com
Contact Us to Learn More
Description:

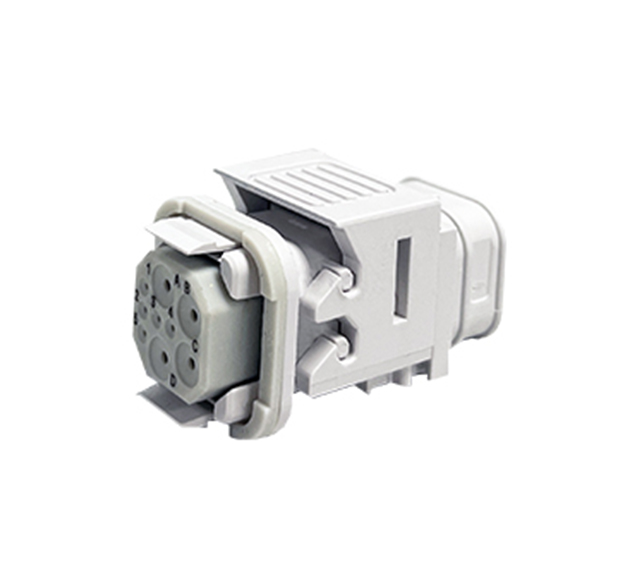

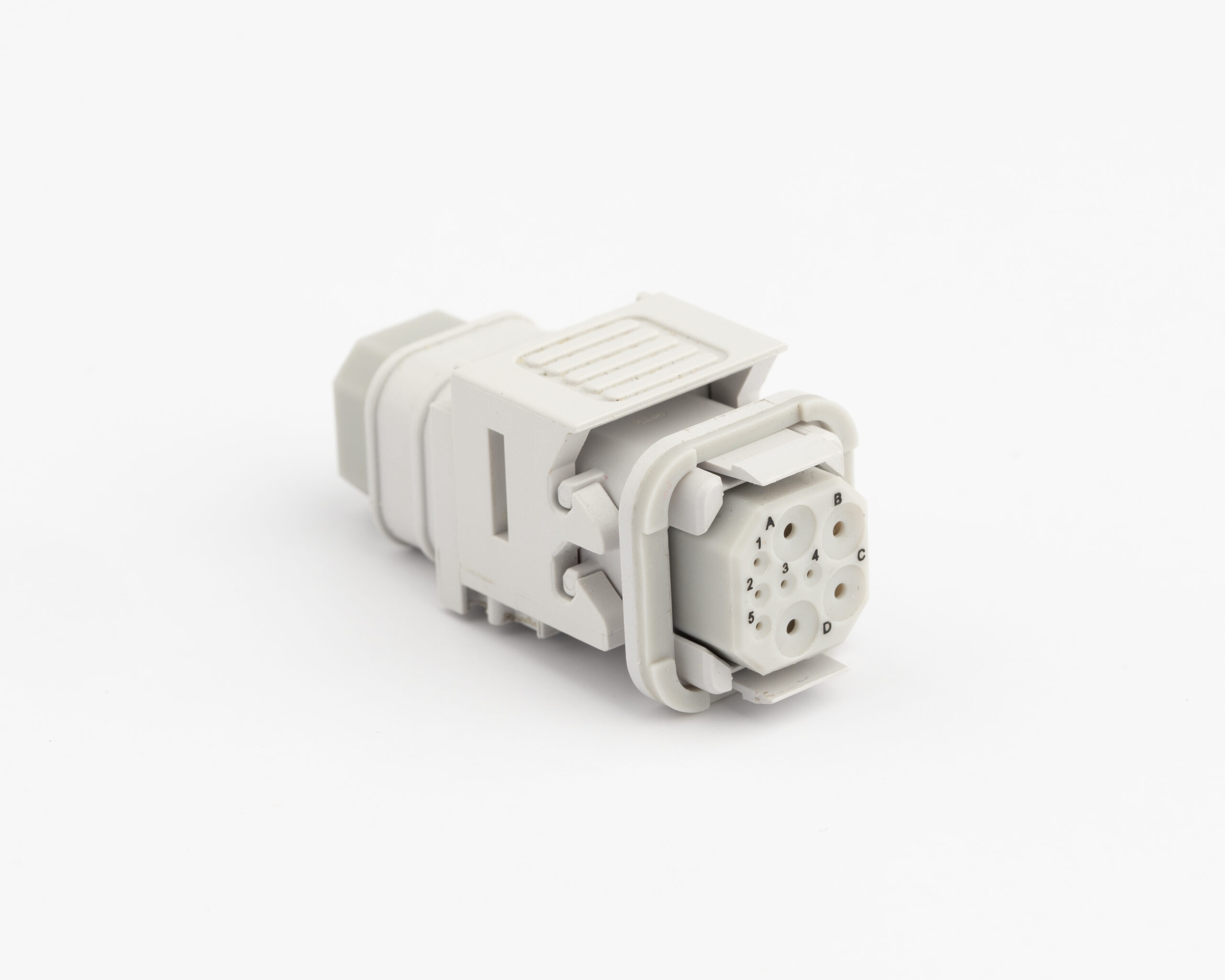

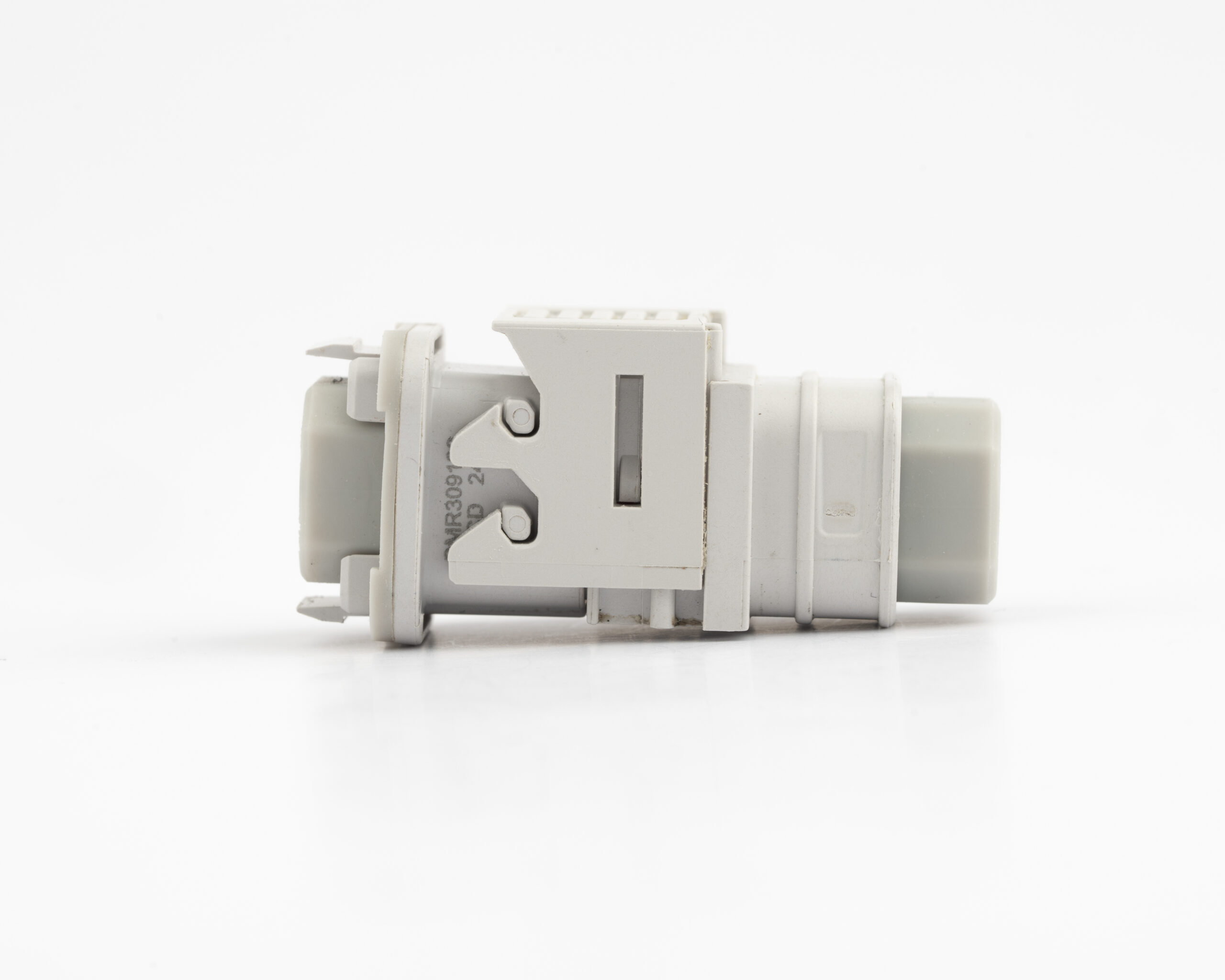

New, Velok is a small, light-weight, and easy to use rectangular connector designed for low and medium power applications. Its compact design allows for limited space access. Velok’s spring-loaded latch makes mating and unmating a snap by simply pushing to lock and unlock connection. The push lock provides convenient single-handed and toolless mating. Positive lock indicator allows assemblers easy to see confirmation the connector is properly mated.
Features & Benefits:
-
Push/Pull Mating: Push-Mate and quick release reduce assembler fatigue
-
Scoop-Proof: Prevents contacts from being bent or electrically shorted during mating
-
Compact Rectangular Form Factor: Ideal where space is limited
-
Positive Lock Indicator: Easy for assembler to see connector is fully mated
-
Polyethermide Housing (Ultem): Wide operating range and chemical resistance
-
Multiple Keying Positions: Reducing operator errors or mis-mating
-
Boot Ridge: Integrated feature for tying off protective sheathing w/o adding backshells or saddle clamps

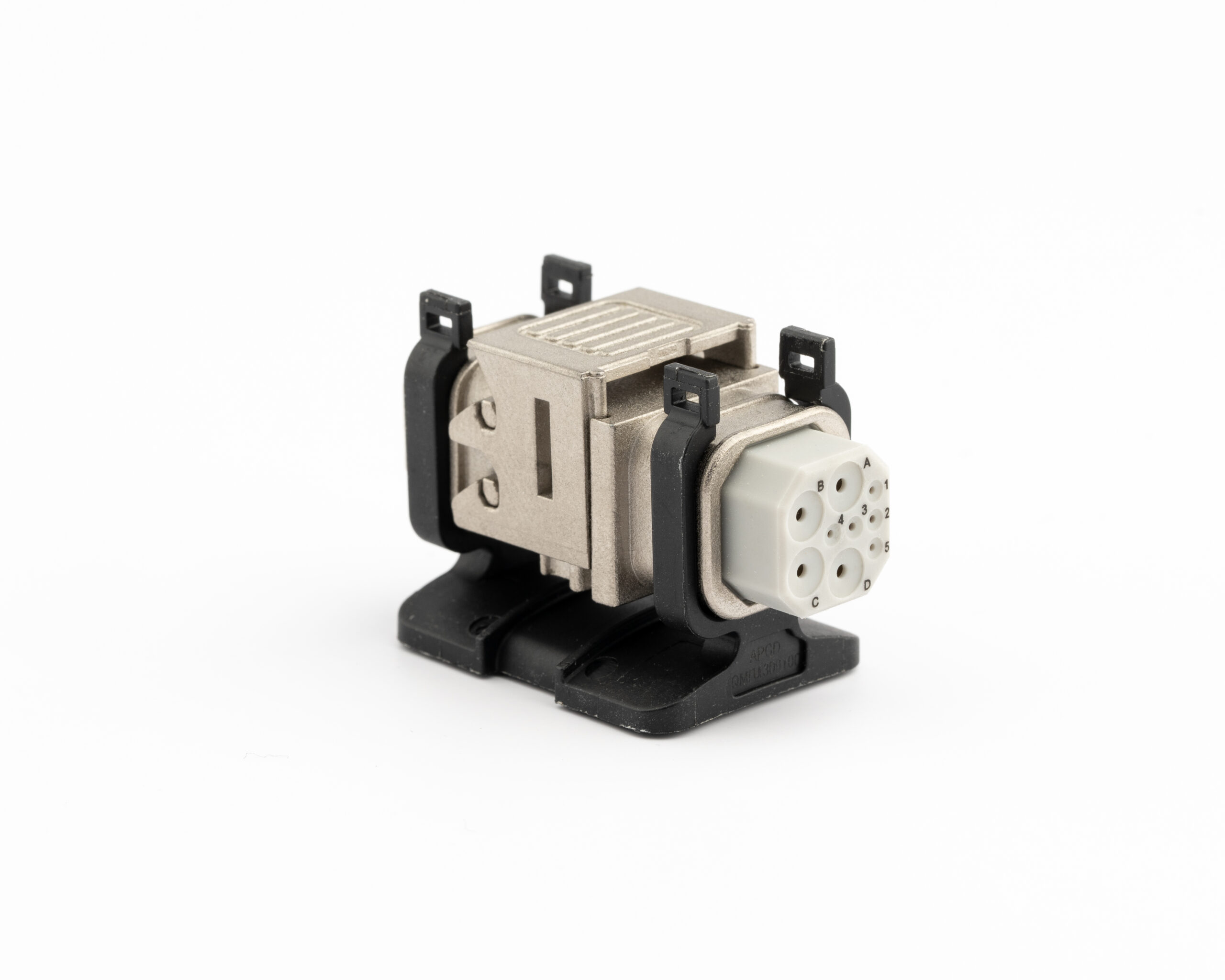

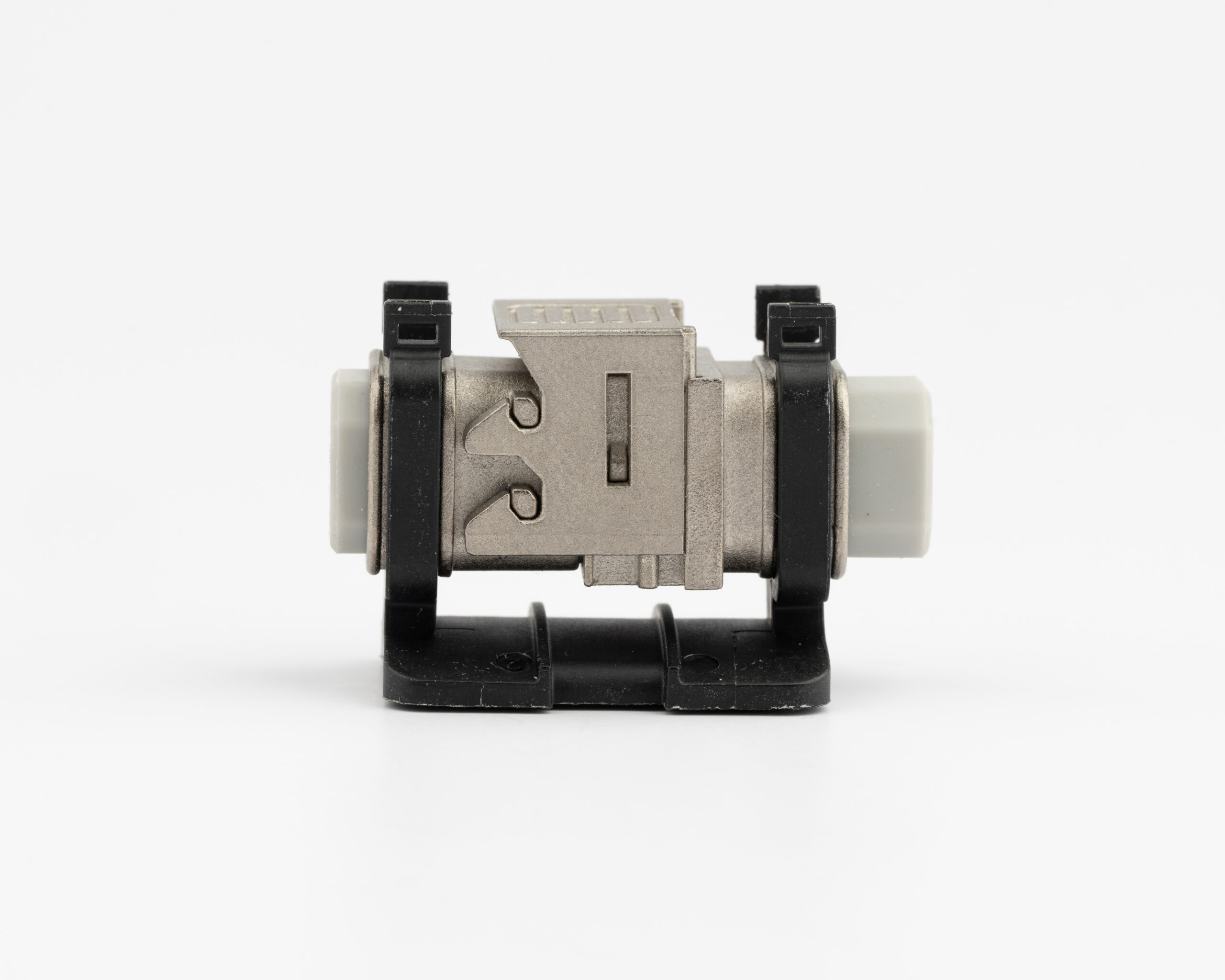

Materials | Mounting Cradle: PA 6/6 |
Materials | Latching Mechanism: PEI |
Contact Insertion & Removal Force | Size 23: ≥ 10 LBF (EIA-364-05) Size 16: ≥ 15 LBF (EIA-364-05) |
Connector Coupling & Decoupling Force | Mating: ≥ 10 LBF (EIA-364-13 Method A) Unmating: ≤ 8 LBF (EIA-364-13 Method A) |
Insulation Resistance | ≥5000 MΩ at 500 VDC (EIA-364-21) |
Dielectric Withstanding Voltage | Size 23: 1300 VRMS (EIA-364-20 Test Condition I) Size 16: 1500 VRMS (EIA-364-20 Test Condition I) |
Dielectric Withstanding Voltage (25,000 FT) | Size 23 and 16: 1000 VRMS (EIA-364-20 Test Condition III and IV) |
Mechanical Durability | 100 Mating Cycles Minimum (EIA-364-09) |
Thermal Shock | Connectors: Test (EIA-364-32) |
Thermal Shock | Condition IV, 150°C to -55°C |
Thermal Shock | Cradle: Test Condition 1, 100°C to -55°C (EIA-364-32) |
Mechanical Shock | 50g @ 11ms half-sine profile (EIA-364-27) Test Condition A |
Humidity | 10 cycles @ -65C, 15°C in 85%-95% RH for 24 hours; EIA-364-31, Method IV, with Cold Shocks |
Salt Spray | 48 hrs.; Tested to EIA-364-26, Condition B |
Contact Retention | Size 23: 9.1 LBF (EIA-364-21) Size 16: 25.1 LBF (EIA-364-21) |
Fluid Resistance | Isopropyl Alcohol (EIA-364-10) |
Fluid Resistance | Methyl Propyl Ketone (EIA-364-10) |
Fluid Resistance | Alkaline Detergent (EIA-364-10) |
Fluid Resistance | Skydrol (EIA-364-10) |
Fluid Resistance | DOW FROST 80 Heat Transfer Fluid (EIA-364-10) |
Seal Rating | Yes |
