Series I Terminal Junction Modules

Contact:

Samantha Bergstrom
Marketing Specialist
978-624-3471
[email protected]

Maxim Tahon
Application Engineer
(978) 624-3520
[email protected]

Contact Us to Learn More

Description:

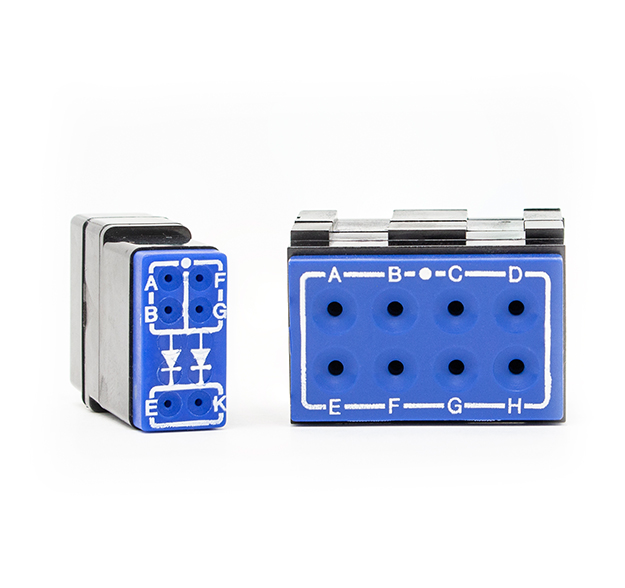

Series I Terminal Junction Modules are robust, reliable and performs to M81714 electrical and mechanical standards.Series I uses standard M39029/1 pin contacts and have blue grommets. Series I Terminal Junction Modules accommodate 12-26 AWG wires. Mounting rail and installation/termination accessories are available as well as customization.

Features & Benefits:

  • Performs to M81714 electrical and mechanical standards

  • M39029/1 Contacts: Meets Mil-C-39029 standards

  • Integral Socket/Bus Bar: Assures electrical and mechanical integrity over long product life

  • Integral Contacts: High conductivity allow for optimum electrical performance

  • Split socket design: Provides peripheral surface wipe and contact, uses the maximum mating surfaces of pin and contact

  • Multiple product types: Wide range of products, four standard sizes, accommodates 12-26 AWG wires

  • Class D Module System: Combines max high temperature and high fluid resistance performance parameters previously divided among three module classes- A, B, C

  • Electronic Systems: Modules can be supplied with a variety of diode, resistors, capacitors, and fuses
