Description:

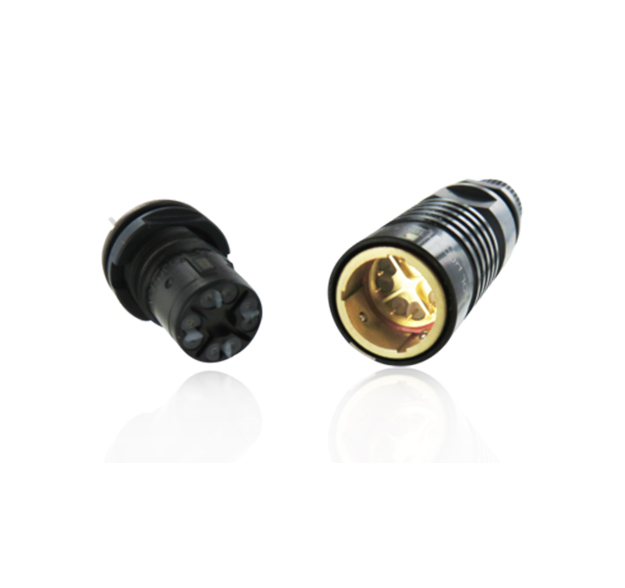

μCom Series is a new range of connectors designed to address the latest trends of the industry: miniaturization and high speed, with the highest resistance for use in the harshest environments. This is our fastest connector series and exceeds Cat6A and Cat7 performance operating speeds of 10 Gb/s and greater. High speeds are due to 4 insulated wire pairs that are isolated from each other throughout the connector. μCom is very small in size and has a max diameter of 15mm. IP68 mated.
Features & Benefits:
-
10Gb+: exceeds 10Gb/s ethernet following IEEE 802.3an-2006: 10GBase-T
-
Cat.6A connector according to TIA568C.2 and ISO/IEC11801 standard
-
15mm max external diameter Cat6A connector
-
Environmental testing based on MIL-DTL-38999 Series III military spec (Thread version)
-
Environmental testing based on MIL-DTL-26482 military specifications (Push Pull version)
-
Available also in 38999 Series III, Shell size 11
