Description:

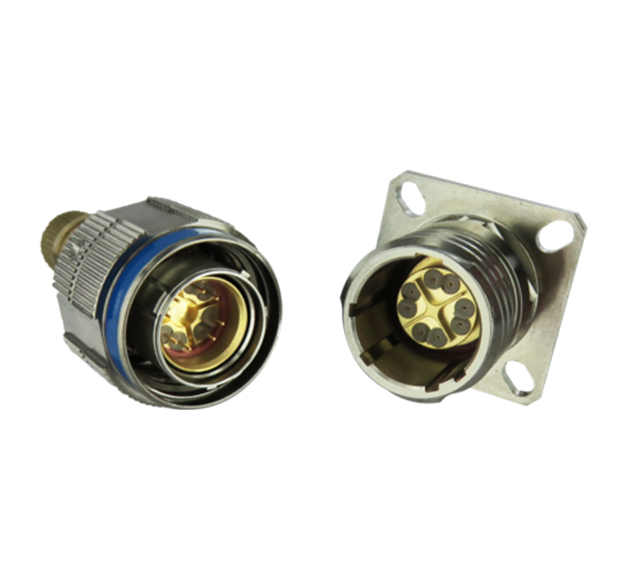

TVμCom is a miniature, high-speed rugged connector where the μCom interface is inserted as a contact into a size 11 38999 series III shell. Exceeds Cat6A and Cat7 performance operating speeds. μCom Series is a new range of connectors designed to address the latest trends of the military industry: miniaturization and high speed, with the highest resistance for use in the harshest environments. TV μCom combines μCom-10G+ speed with 38999 Series III size 11 shells robustness.
Features & Benefits:
-
Based on MIL-DTL-38999 series III – Shell size 11
-
10Gb+: exceeds 10Gb/s Ethernet following IEEE 802.3an-2006 : 10GBase-T
-
Cat.6A connector according to TIA568C.2 and ISO/IEC11801 standard
-
Aluminum, stainless steel and marine bronze shell
