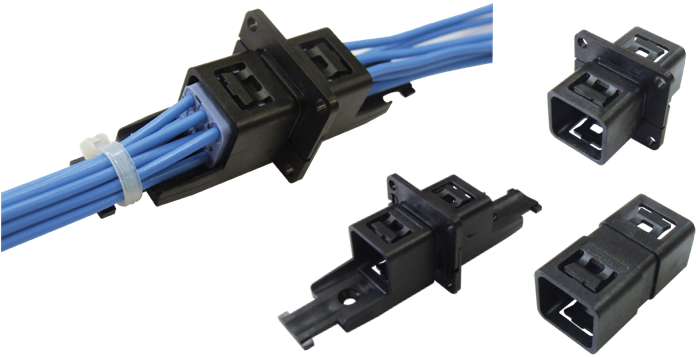

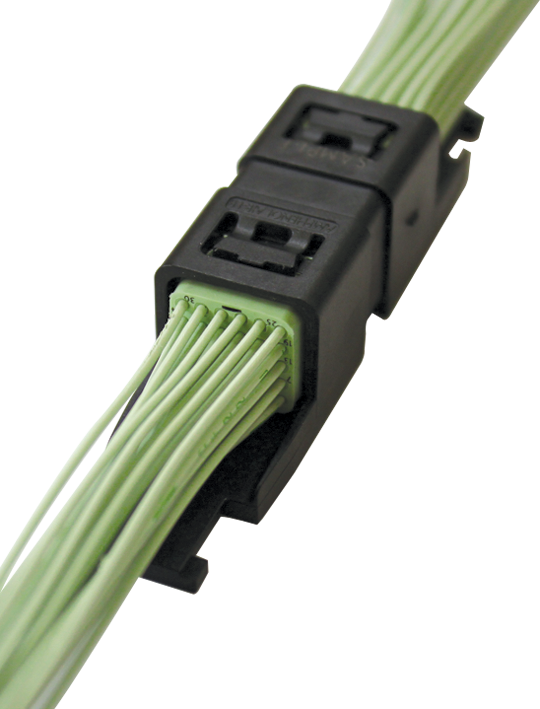

This modular composite splice provides a reliable and simple connection between two EN4165 / SIM modules. Available with or without cable clamp, and/or flange, the SIM splice can be fixed on/under a structure or Feed-through. It can be fitted with the whole range of EN4165 / SIM modules. In-Seat Modular & Flexible Wiring; Quick install interconnect, splicing.

Features & Benefits:

  • Quick and easy mounting, designed to optimize space.

  • Many housings and contact layout options.

  • Sealed - IP66 / IP68 and IP69K. Suited for 1 upt 12 contacts, cross sections 0.25 mm² to 2.5 mm² for EN50306-2 cables.

  • Resistant to high and low operating temperatures: -55°C to +175°C.

  • Unmating without tool.

  • Resistant to salt spray.

  • Fire/Smoke/Toxicity conform to ABD0031 and FAR 25853

SIM Splice Declaration of Design and Performance
