Description:

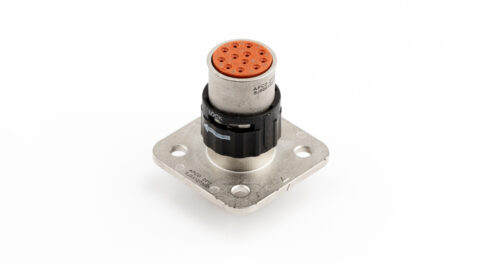

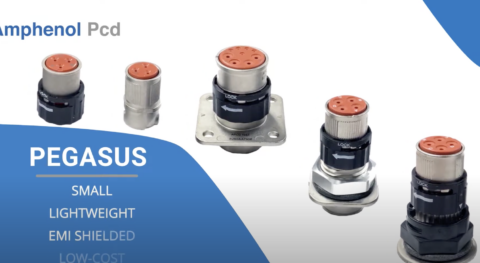

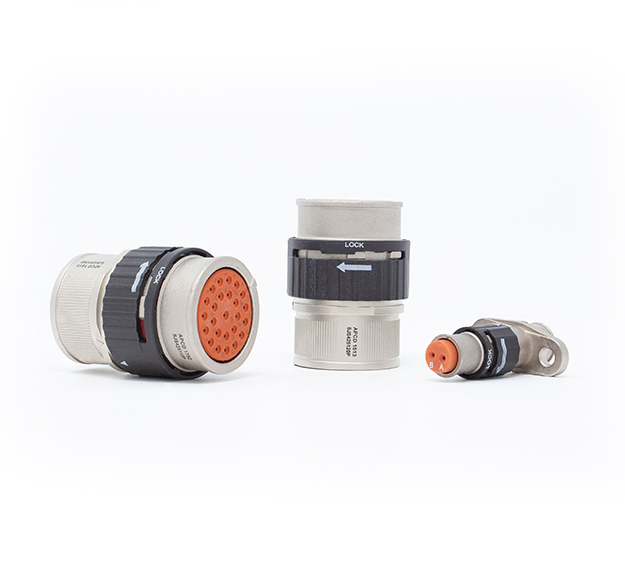

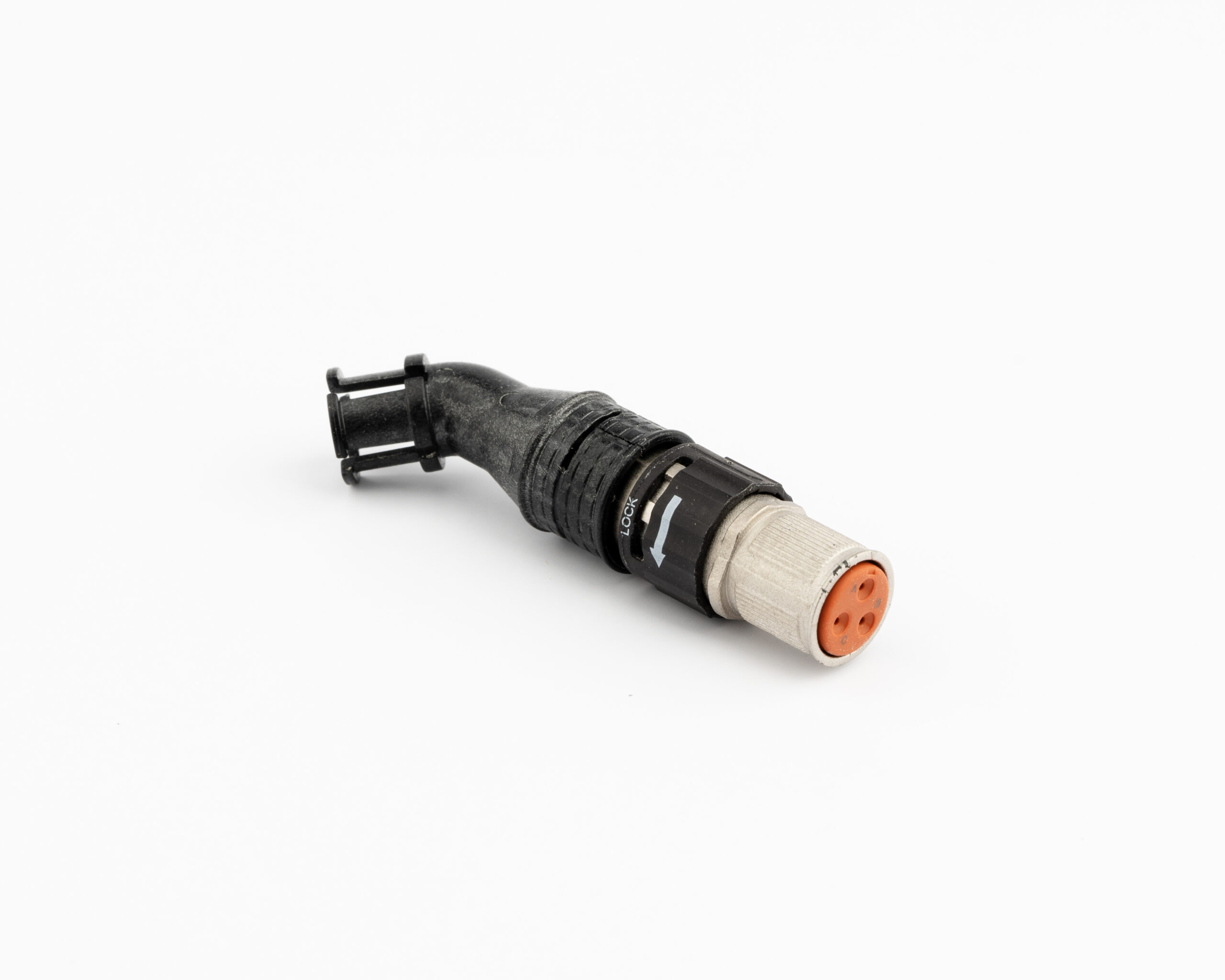

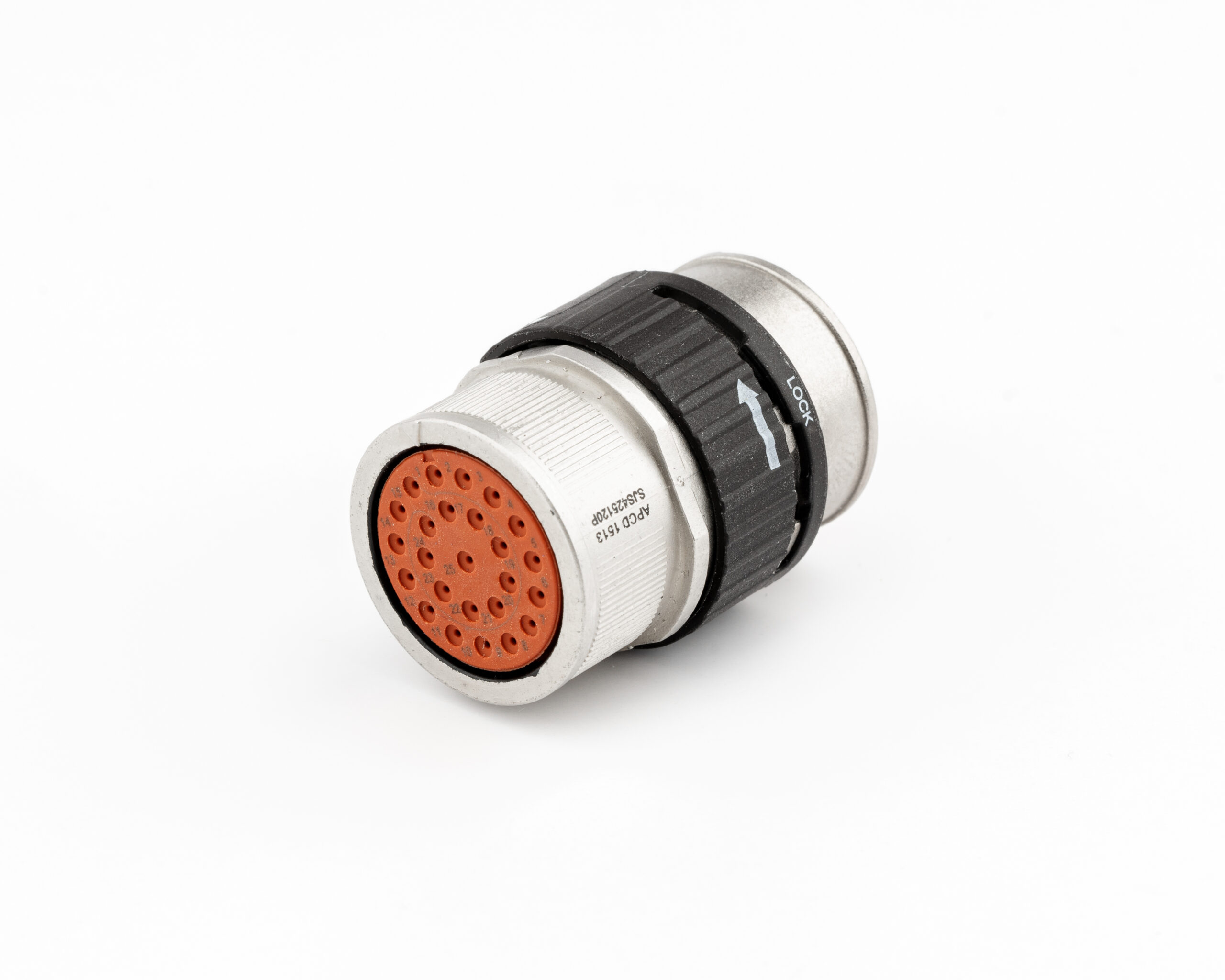

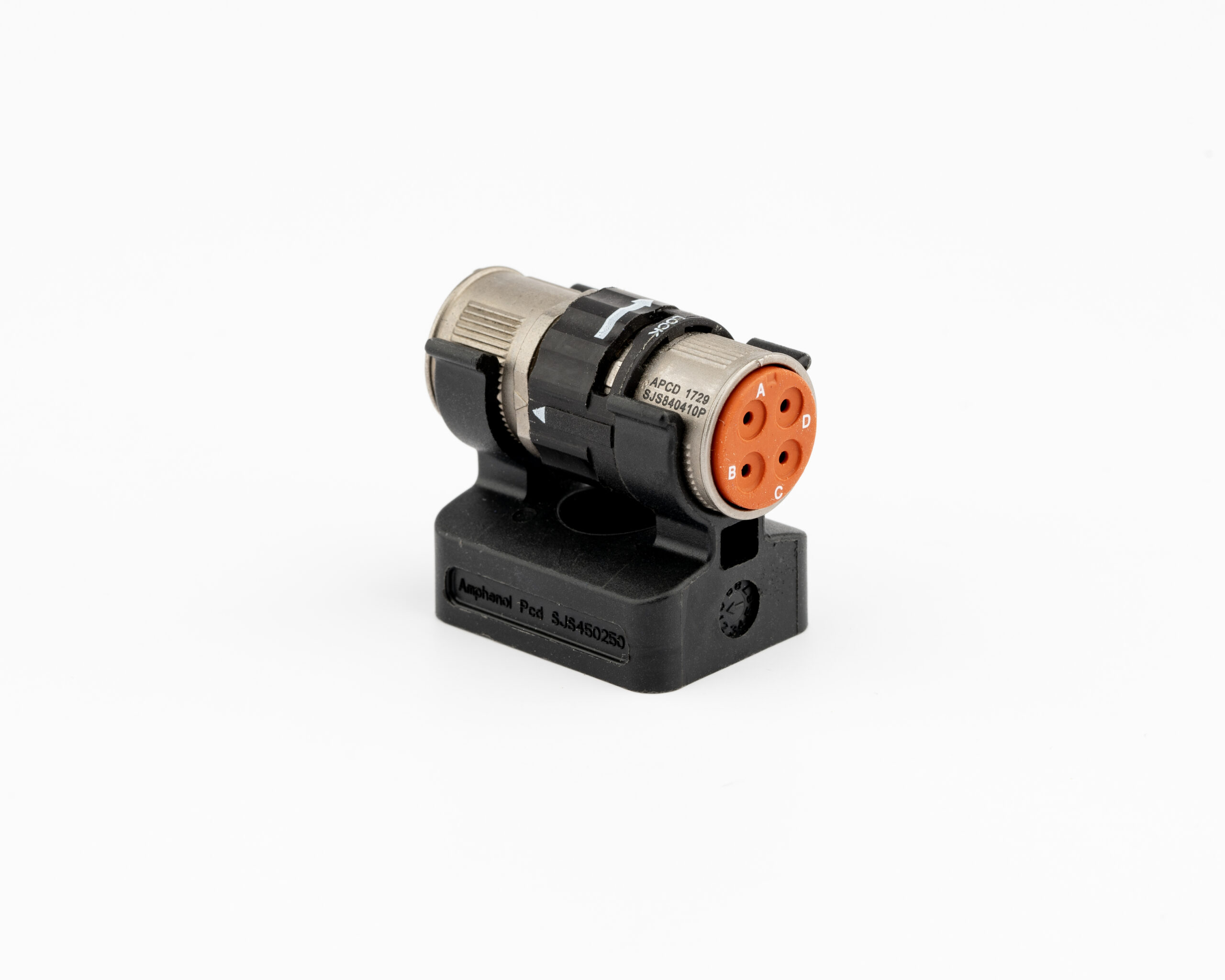

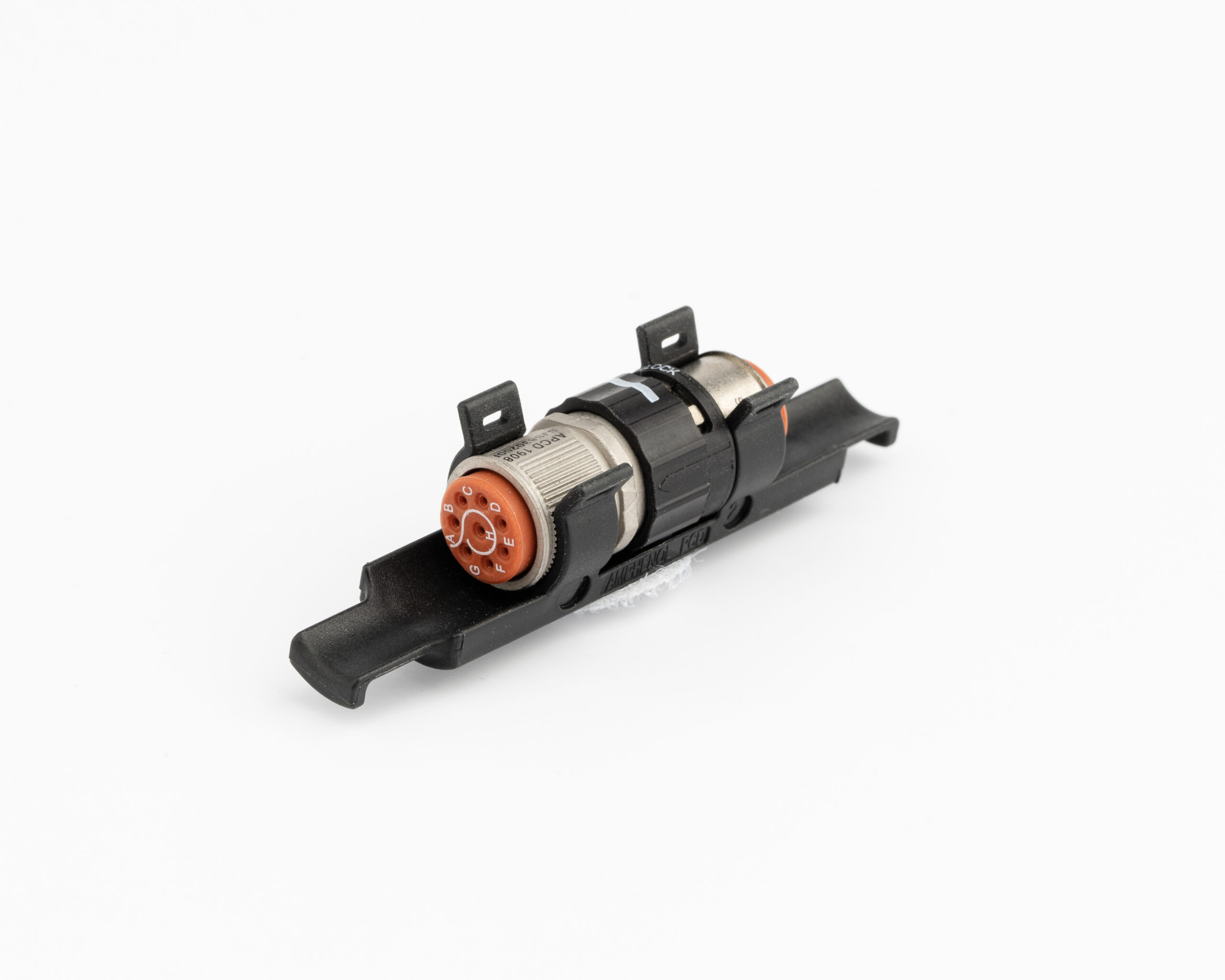

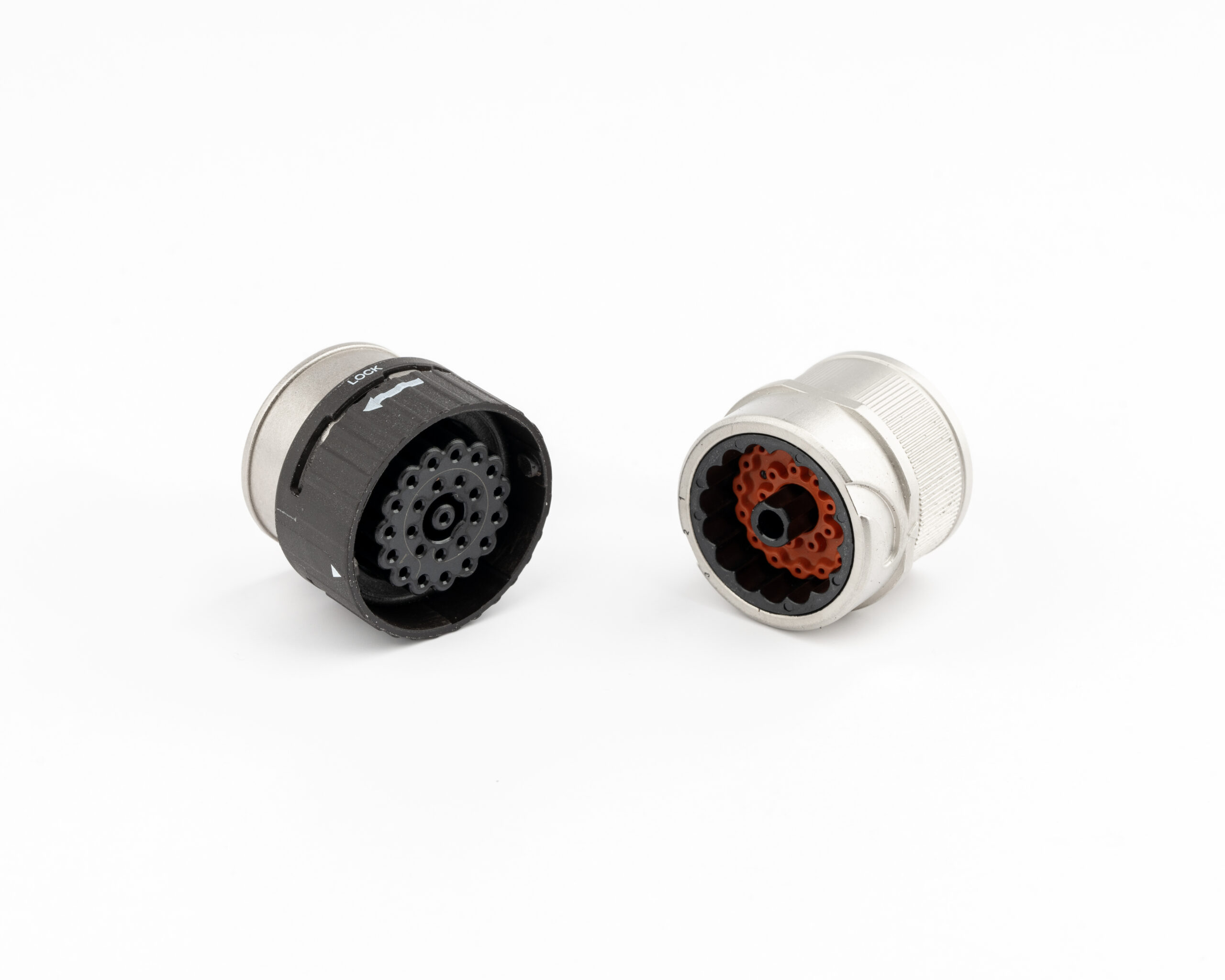

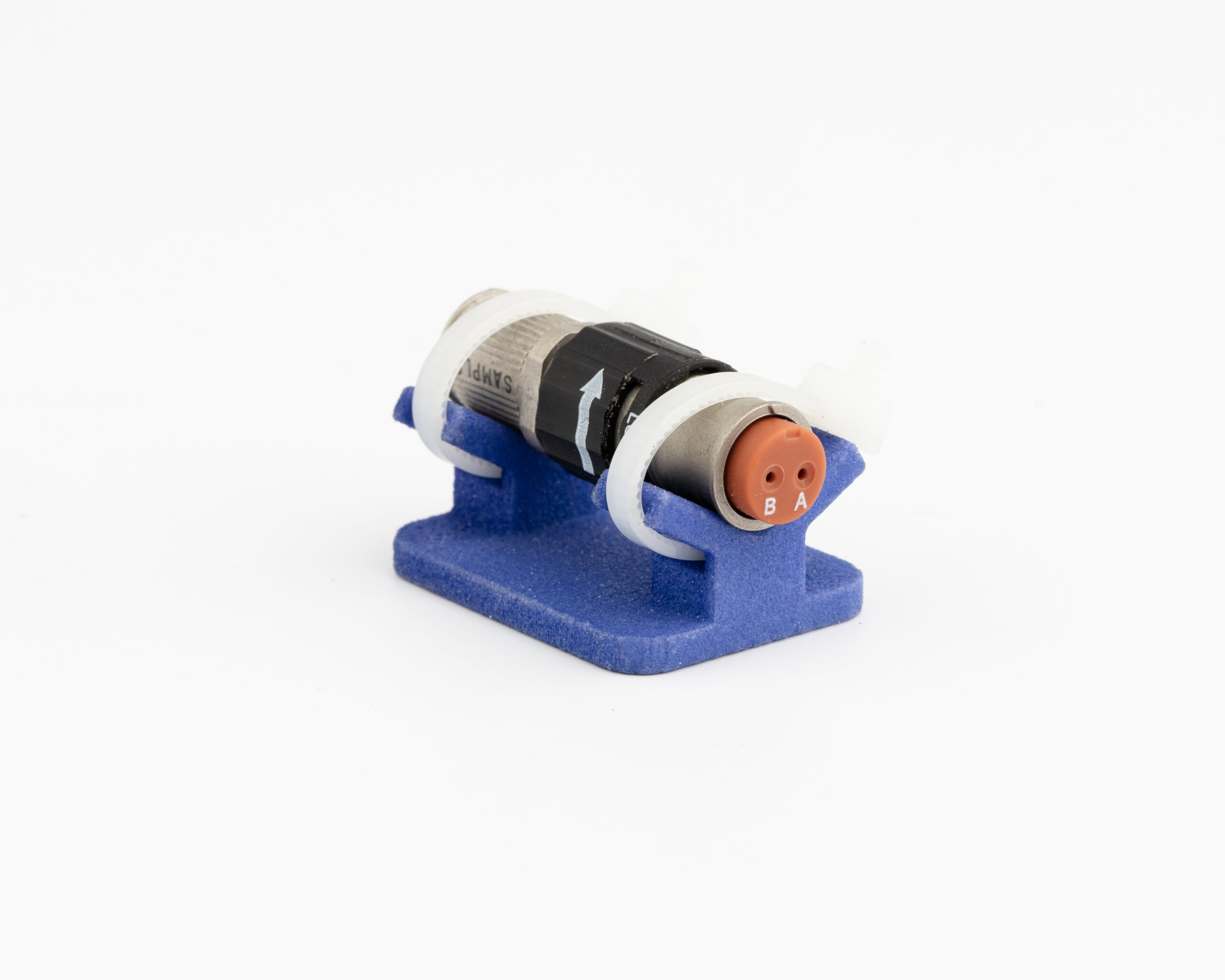

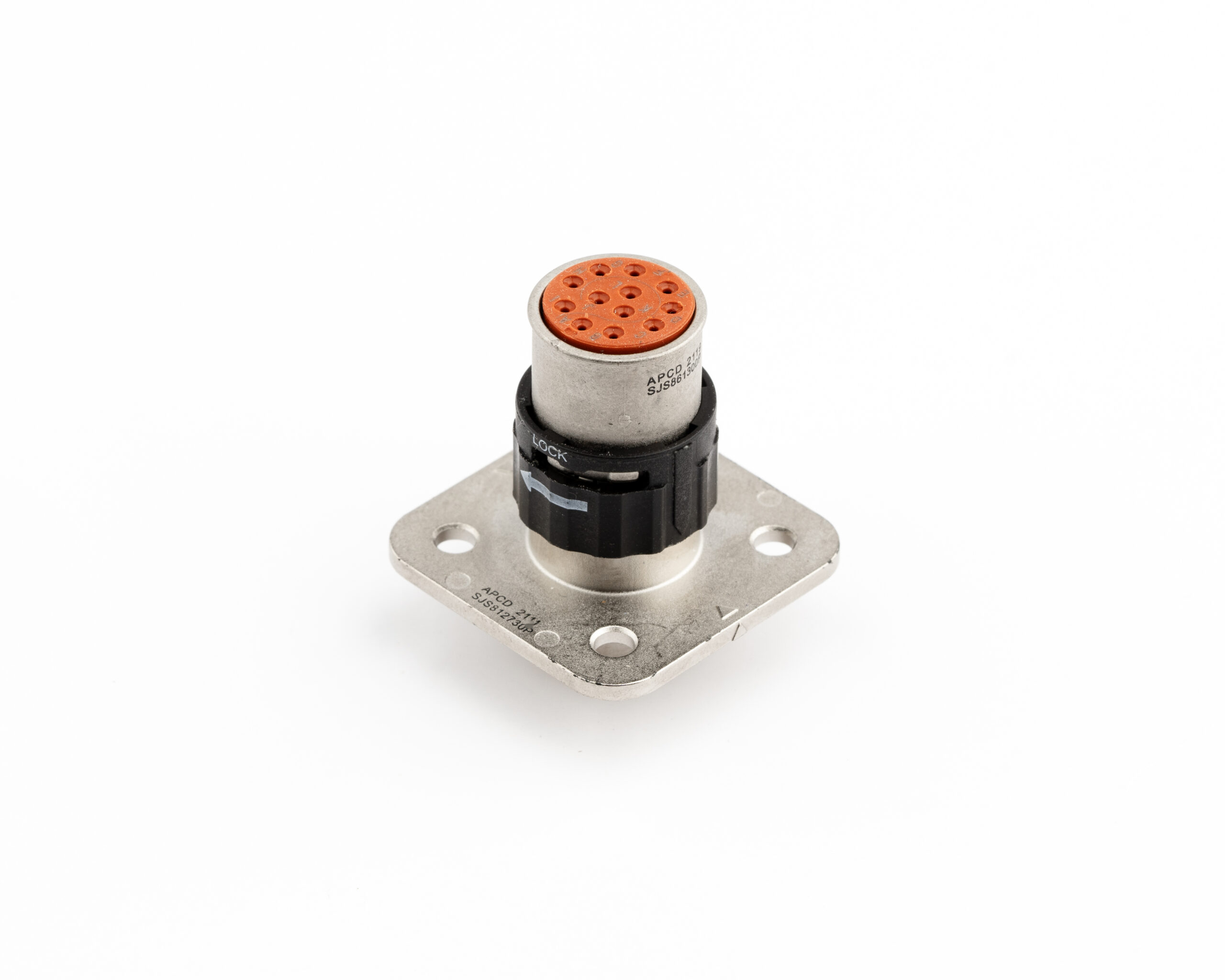

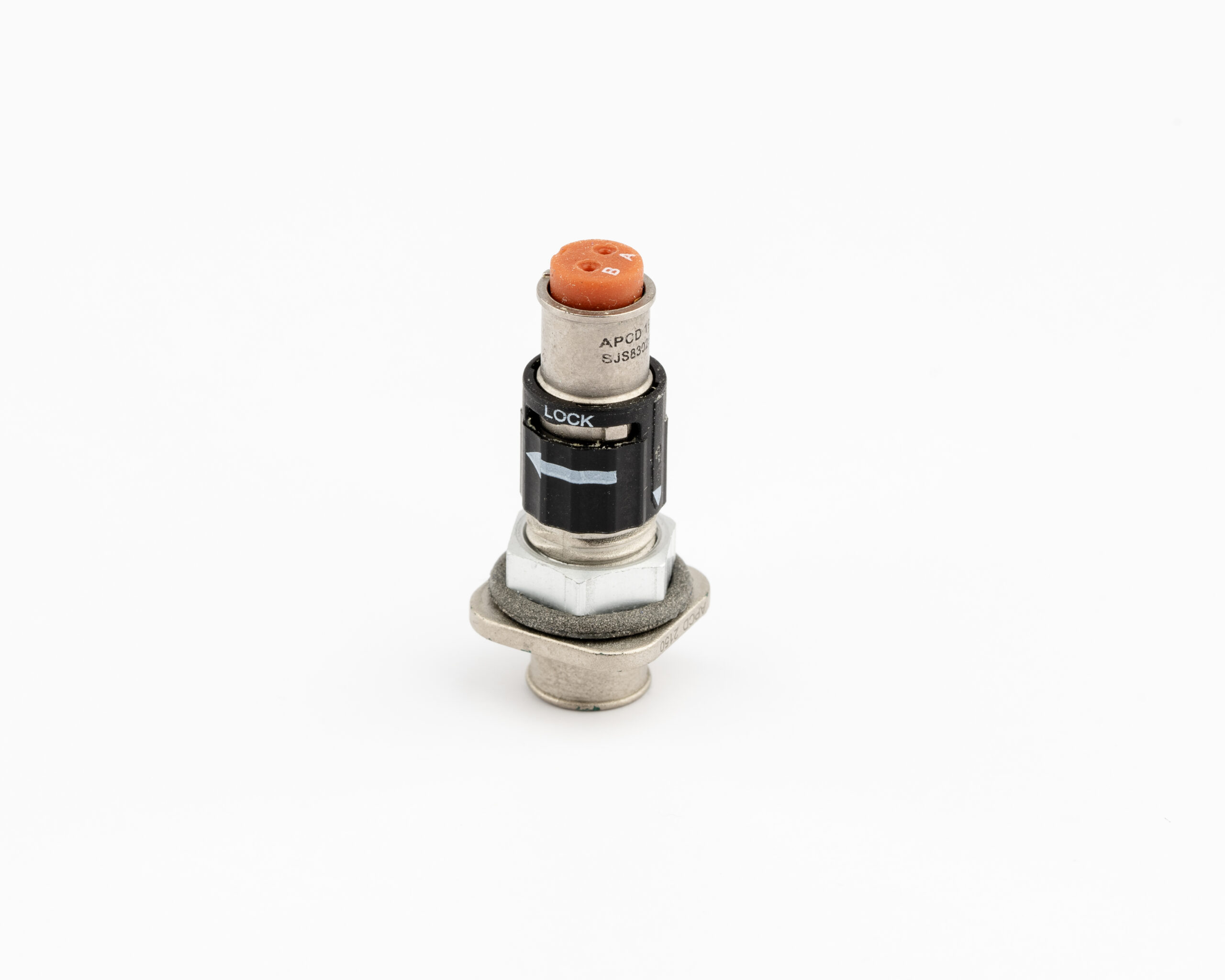

The Pegasus Series is Amphenol Pcd’s latest innovation in small, lightweight, rugged connectors. Designed for use in harsh environments, Pegasus builds on the successful Luminus Aerospace connector with the addition of EMI shielding.
EMI shielding is provided by electroless copper and nickel plate, with a copper alloy spring finger gasket to ensure shell-to-shell conductivity. Tests show between 40db and 60db of attenuation, depending on frequency. This combination of light weight, small size, and EMI shielding makes Pegasus the ideal choice where protection against ambient noise transients, or suppression of emitted noise is required, and space and weight are at a premium.
Features & Benefits:
-
Electroless Copper and Nickel plating: Enables EMI shielding from ambient noise transients
-
1/4 turn bayonet style connection: Makes wire installation and maintenance easy and efficient
-
Interfacial and Triple-Barrier Seal: Enables environmental sealing (IP 67 rating)
-
Many sizes, colors, and configurations to choose from
-
Scoop-Proof: Prevents contacts from being bent or electrically shorted during mating
Materials & Specifications
Materials | Insulator Body: Polyamide 6/6 (Nylon) |
Materials | Grommet & Face Seal: Silicone Rubber |
Materials | Contact Retainer: Stainless Steel |
Temperature Range | -65˚C to 125˚C |
Temperature Life | 500 hours @ 85˚C |
Insulation Resistance | 5000 MΩ Min. @ 500 VDC |
Dielectric Withstanding | 1500 VAC, 60 Hz @ Sea Level, 1ma |
Dielectric Withstanding | 300 VAC, 60 Hz @ 70,000 ft, 2ma |
Durability | Min 100 mating cycles; 250 typical |
Temperature Cycling | 5(1) Hour Cycles: -65˚C to 125˚C |
Thermal Shock | -65˚C to 200˚C |
Vibration | 30G Sinusoidal; 43.96G Random |
Shock | 300G, 3msec, Half-Sine |
Salt Spray | 5% Salt Spray @ 95˚C for 48 Hours |
Humidity | 10 Days @ 25˚C to 65˚C, 90% - 95% RH |
Seal Rating | IP67 |
Altitude Immersion | Current Altitude Immersion Level - See Table |
RoHS & REACH Compliance | Yes |
Flammability | UL94, V0. |
Flammability | DOTG section 26.6.2 & 26.6.3 |
Flammability | FAR Part 25 App F Part I |
Fluid Immersion | Lubricating Oil per Mil-Prf-7808 |
Fluid Immersion | Cleaning Compound per Mil-Prf-87937, Alkaline Base |
Fluid Immersion | Isopropyl Alcohol & Mineral Spirit Solution |
Fluid Immersion | Skydrol Hydraulic Fluid |
Fluid Immersion | Hydraulic Fluids per MIL-PRF-83282; MIL-PRF-87257 |
Fluid Immersion | Ethylene Glycol |
Fluid Immersion | Propylene Glycol |
Fluid Immersion | Aviation Jet A |
Contact Insertion & Removal Force (Not to exceed) | Size 22/10 lbs. |
Contact Insertion & Removal Force (Not to exceed) | Size 20/10 lbs. |
Contact Insertion & Removal Force (Not to exceed) | Size 16/13 lbs. |
Contact Insertion & Removal Force (Not to exceed) | Size 12/15 lbs. |
Contact Retention (Min.) | Size 22/10 lbs. |
Contact Retention (Min.) | Size 20/15 lbs. |
Contact Retention (Min.) | Size 16/25 lbs. |
Contact Retention (Min.) | Size 12/30 lbs. |
Current Altitude Immersion Level by Part Number
