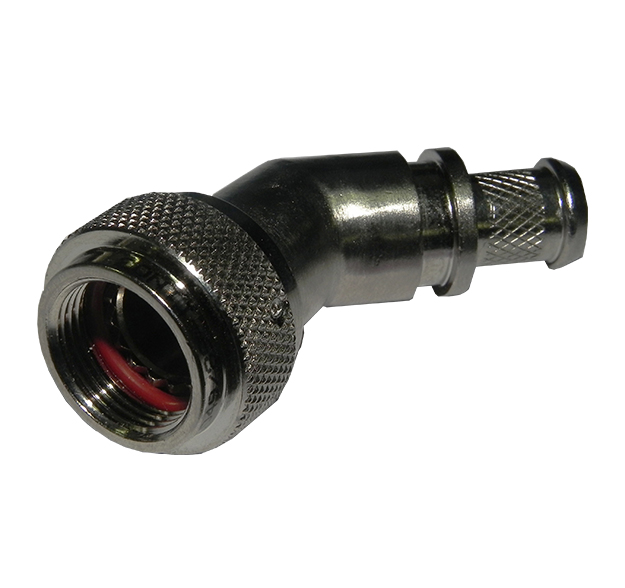

Bandlock Adapter
Contact:
Aman Bhargava
Product Specialist
978-624-3416
backshells@amphenolpcd.com
Garret Faulkingham
Marketing Specialist
(978) 304-2347
backshells@amphenolpcd.com
Contact Us to Learn More
Description:
A high quality band will do the job with this backshell. Tempered bands are tightened over the shields, which are pulled over the banding area using a special assembly tool. Suitable over cover by heat shrink boot or some other method as chosen by the designer could be used. Both crimp ring and banded terminations give a low DC resistance.
Features & Benefits:
-
Ideal for compact designs
-
EMI/RFI shielding
-
shield termination by suitable band style
-
works with heat shrink boots
-
Offered in QPL, custom solutions, and commerical types
M85049-82-83-84-Band-Lock-Adapter
M85049-85-86-87-Band-Lock-Adapter
M85049-88-89-90-Band-Lock-Adapter-Composite
M85049-88-89-90-Band-Lock-Adapter
QPL Backshell & Dust Caps
Amphenol Designation | Mil Spec Designation | Base Material | Finish / Plating | Finish Specification / Standard | Salt Spray (hours) | Electrical Conductivity | RoHS | Operating Temp Range |
A | A | Aluminum | Anodized Black | AS85049 | 500 | Non-Conductive | Yes | -65°C to +175°C |
CW | J | Composite | Cadmium, Olive Drab over Electroless | AMS-QQ-P-416 TYPE II CLASS 1 OVER, ELECTROLESS NICKEL AMS-C-26074 CLASS 4 GRADE B | 2000 | Conductive | No | -65°C to +175°C |
CP | L | Composite | Cadmium, Olive Drab over Electroless Nickel, Selective Palting | AS85049 | 2000 | Conductive | No | -65°C to +175°C |
CN | M | Composite | Electroless Nickel | AMS-C-26074 | 2000 | Conductive | Yes | -65°C to +200°C |
N | N | Aluminum | Electroless Nickel | AS85049 | 96 | Conductive | Yes | -65°C to +200°C |
P | P | Aluminum | Cadmium olive drab over Electroless Nickel, Selective Palting | AS85049 | 96 | Conductive | No | -65°C to +175°C |
S | S | Stainless Steel | SS 304L Material with passivation | AMS-QQ-P-35 or ASTM A 967 | 1000 | Conductive | Yes | -65°C to +200°C |
T | T | Composite | Without Plating | N/A | 2000 | Non-Conductive | Yes | -65°C to +175°C |
W | W | Aluminum | Cadmium, Olive Drab over Electroless Nickel | AS85049 | 1000 | Conductive | No | -65°C to +175°C |
TN | X | Aluminum | Nickel Teflon | AMS-2454 | 500 | Conductive | Yes | -65°C to +175°C |
ZN | Z | Aluminum | Black Zinc Nickel | ASTM-B841 | 1000 | Conductive | Yes | -65°C to +175°C |
ZP | ZP | Aluminum | Zinc Nickel over Electroless nickel selective plating | AS85049 | 96 | Conductive | Yes | -65°C to +175°C |
