Junction Modules
Terminal/Socket Junction Modules
Provide 20 contacts in under 1 sq. in., with mounting options for direct installation on airframes or vehicle frames.

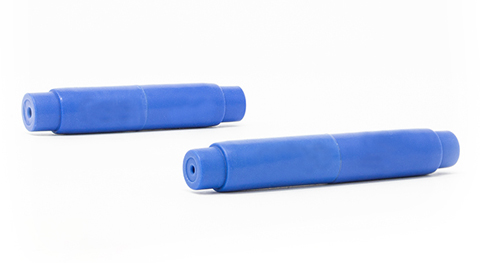

Inline/Electronic Splices
Splices in the form of Diodes, resistors, capacitors, and fuses available enabling system modifications to be integrated directly into wire bundles.

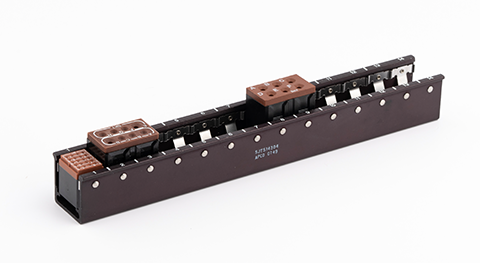

Mounting Tracks
Mounting track for Series I and II junction modules. Holds feedback and feedthrough modules, from 2 to 28 positions.

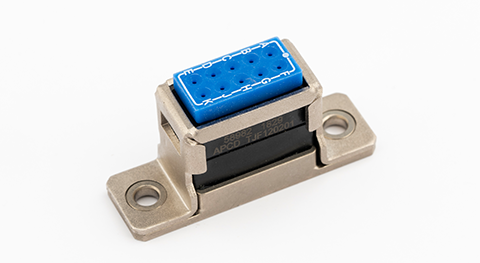

Lightweight Ground Modules
Series I Ground Modules with pin M39029 contacts, along with Series II Modules, deliver the benefits of our terminal junction modules with the advantage of direct frame mounting.

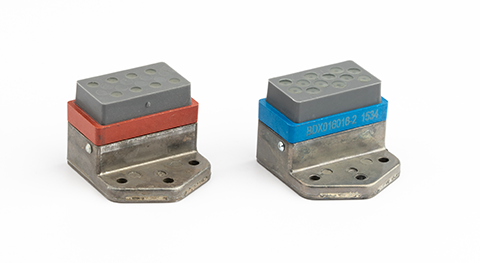

Ground Blocks – BACC50
For signal and low current distribution, where sealing, space and weight-saving are required. BACC50 Qualified.
Junction Modules are high performance and reliable in grounding and low-medium power distribution applications. Designed to accommodate M39029 pin or socket contacts, Amphenol PCD Junction Modules support wire sizes ranging from 12 AWG to 26 AWG. Additional customization options and mounting tracks are available to meet specific application needs. Use Junction Modules as bussing between systems, and component housing for electronics such as resistors, diodes, fuses, and capacitors.
