Terrapin
Contact:
Elena Moisidis
Product Specialist
(978) 872-0363
circular@amphenolpcd.com
Andrew Guilmain
Marketing Specialist
(978) 996-55490
circular@amphenolpcd.com
Contact Us to Learn More
Description:

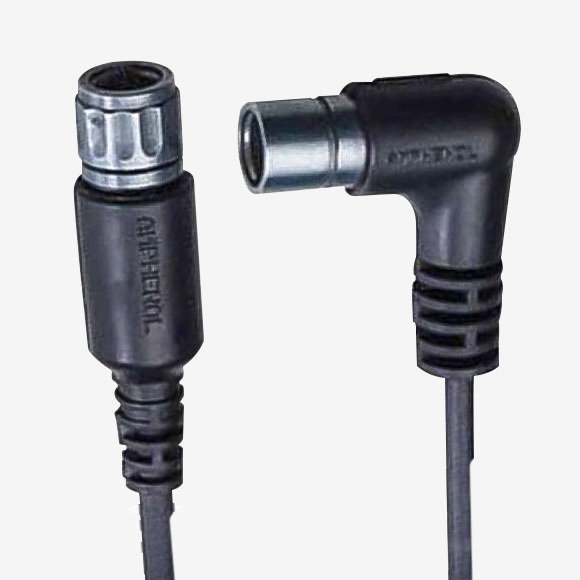

Intended for harsh environment applications and used extensively in soldier communications, Amphenol Terrapin is a miniature series of circular push-pull connectors. Within a rugged shell design Terrapin offers superior EMC performance and high environmental sealing to IP68. Resilient in severe battlefield situations the RoHS compliant black-silver plating is both low-lustre and corrosion resistant. Featuring an optional locking mechanism, multiple shell sizes with up to 37 contacts and suitability for overmoulding, Terrapin is the preferred choice for miniature connectors in military and other harsh environment applications.
Features & Benefits:
-
Miniature footprint
-
Quick release breakaway or latched
-
From 7 to 37 contacts
-
Sealed to IP68, up to 20m immersion
-
2000+ matings
-
Multiple keying options
Current Rating | 28 AWG contacts: 1.5A d.c. |
Current Rating | 23 AWG contacts: 3A d.c. |
Current Rating | 20 AWG contacts: 7.5A d.c. |
Shell to Shell Continuity | 10mΩ max (screened) |
Contact Resistance | 5mΩ initial |
Contact Resistance | 10mΩ maximum |
Insulation Resistance | 1000MΩ minimum, production tested to 500MΩ* |
Working Voltage | AC (RMS) 400V contact dependent |
Dielectric Withstanding Voltage | 2mA maximum leakage |
Mating Durability | 2000+ cycles |
Backshell Recommended Torque | 19.914 lb.in / 2.25Nm |
Panel Nut Recommended Torque | 19.914 lb.in / 2.25Nm |
Non-magnetic | Yes |
Operating Temperature Range | -55°C to +125°C |
Temperature Endurance | 250 hours +125°C |
Sealing (mated and unmated) | IP68, 1 hour at 2 metres* |
Air Leakage | Less than 1cc per hour |
Salt Spray | 1000 hours |
Altitude Immersion | 70,000 Feet |
RoHS Compliant | Yes |
Suitable for RoHS compliant Soldering | Yes |
