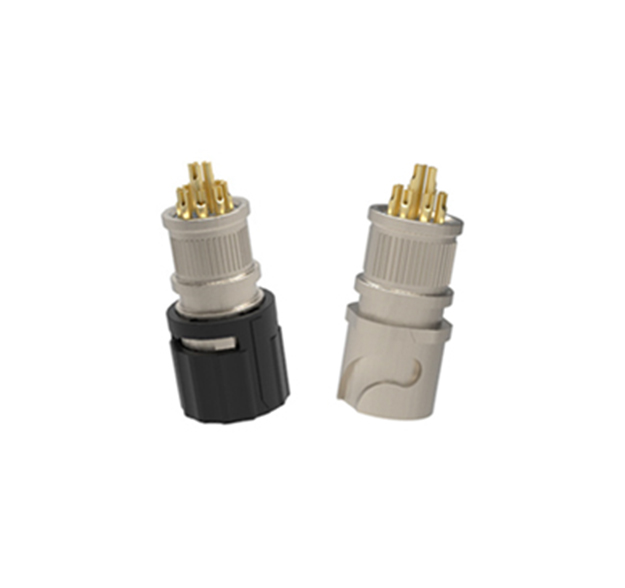

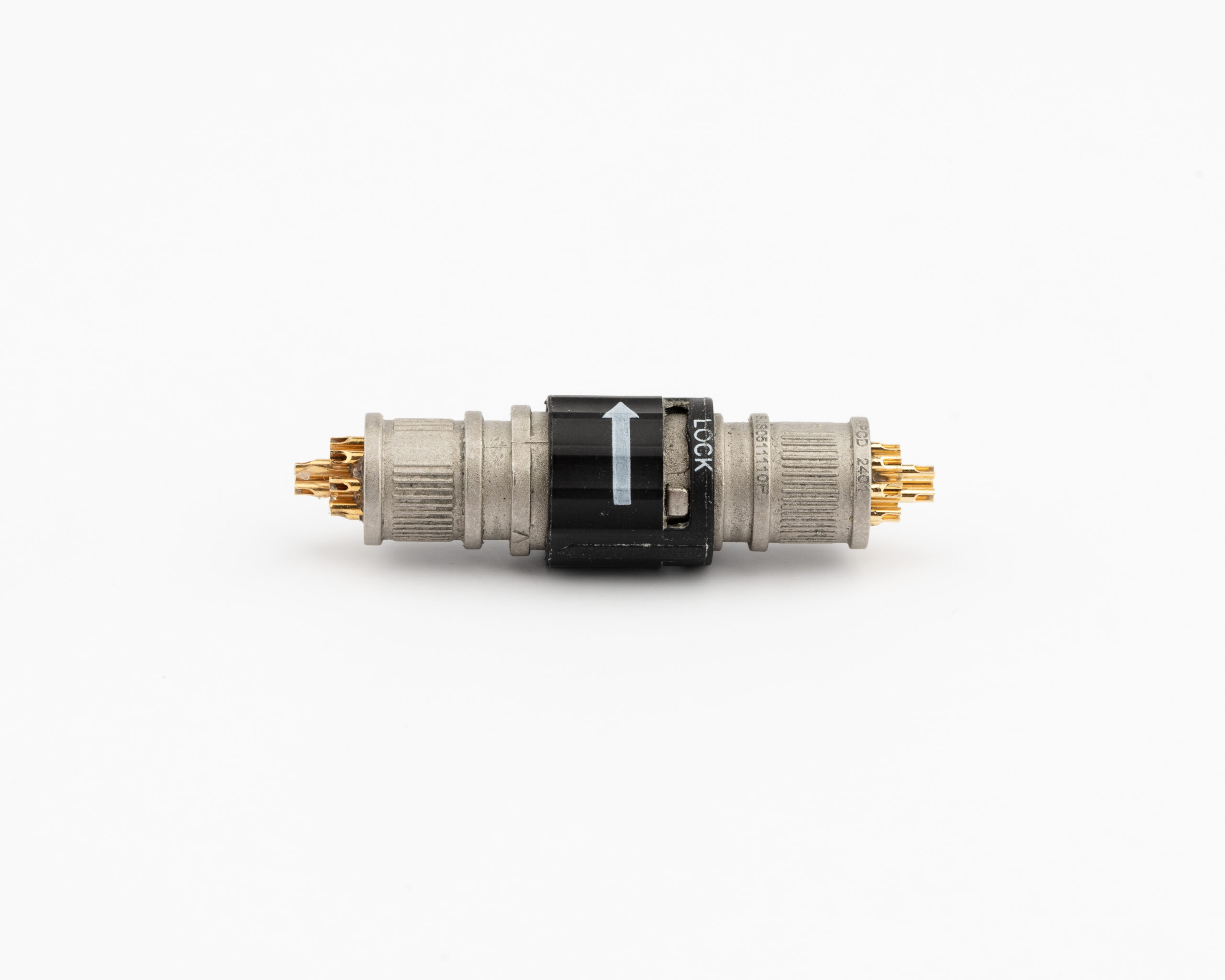

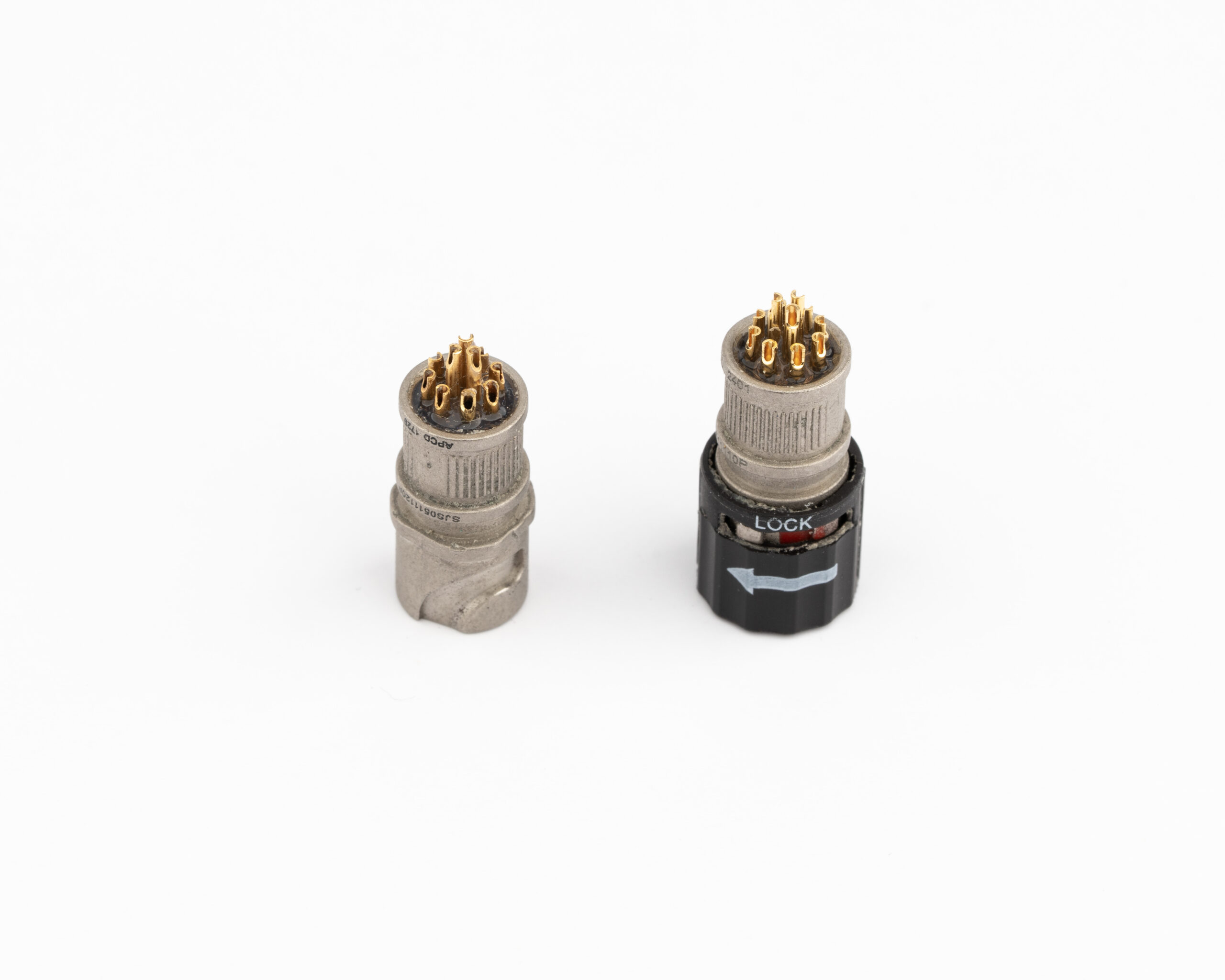

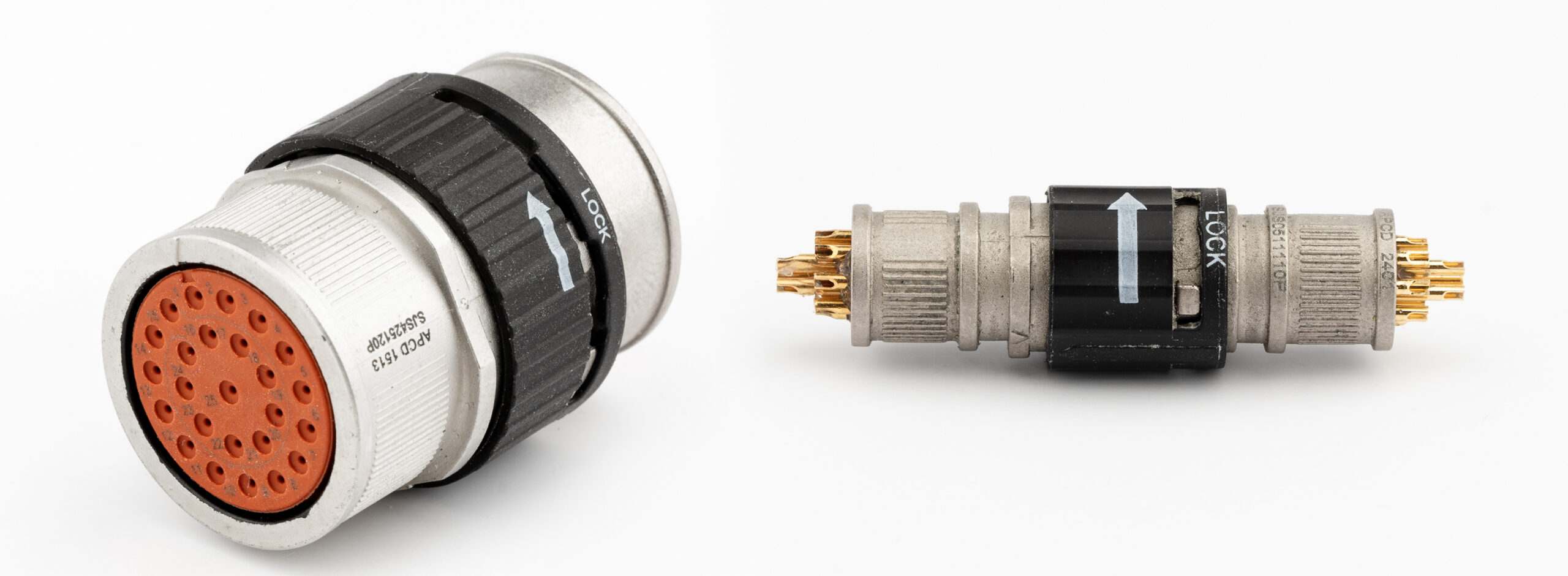

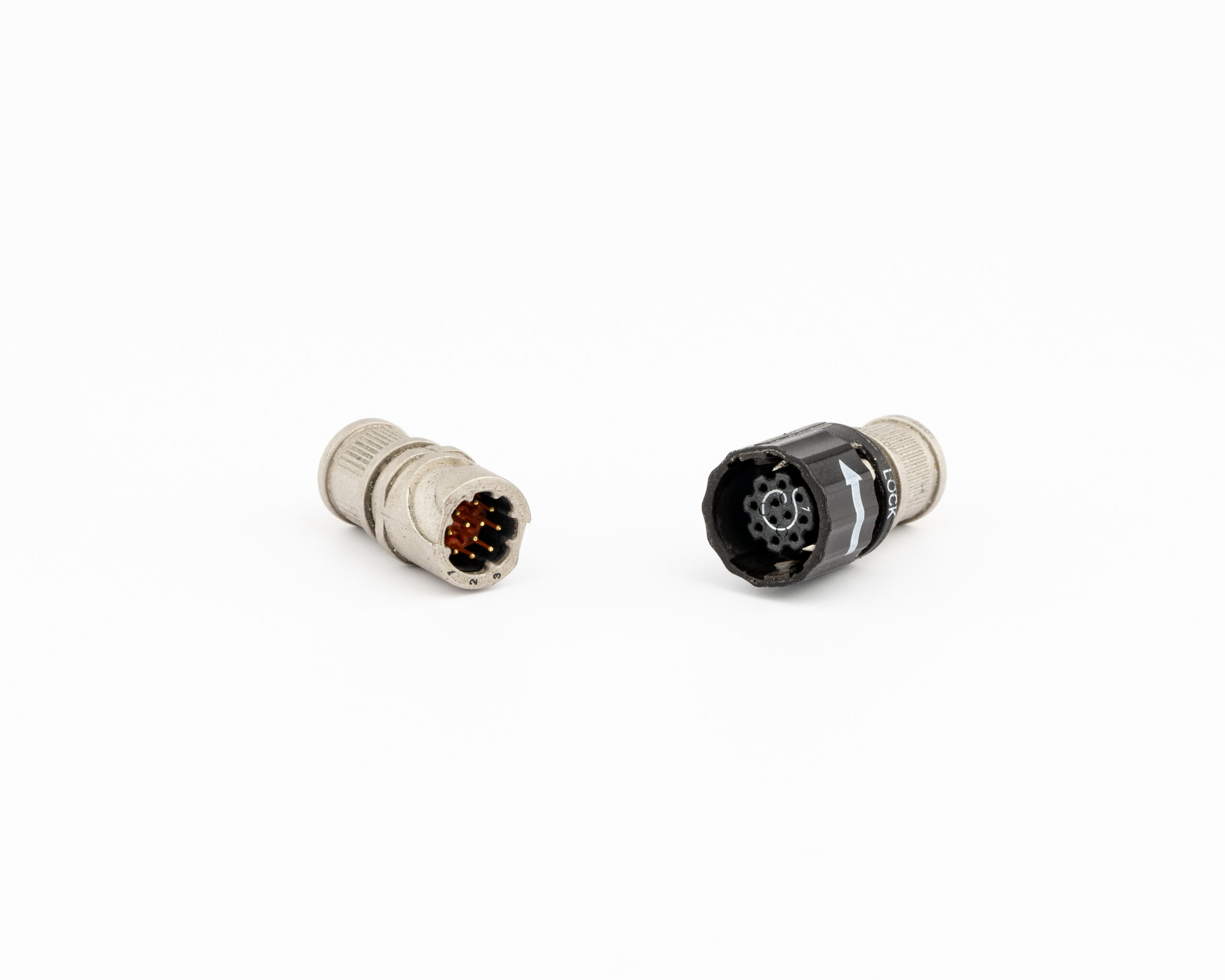

Nano Luminus/Pegasus are small, composite, easy to use connectors designed specifically for sensing, command and control applications where a Micro or Nano Dsub would be used. Ideal for use in tight spaces, packing 11 high grade contacts in a shell size 5 housing.

Features & Benefits:

  • ¼ Turn Cam Lock: Easy to use, blind mate with audible click and visual locking aids

  • Interfacial & Wire sealing: IP67 performance for use in human interface, wet and damp applications

  • Polyethermide Single Piece Housing: High temperature resistance, resistance to a large number of harsh fuels & chemicals, a long working life & high mating cycles

  • 7.5 grams / mated pair: Lighter weight means longer flight times, larger payloads, longer battery life in non-static applications

  • 28 awg wire barrel: 1.5A continuous over full voltage and temperature range

  • 0.050” Contact Spacing: Very high density interconnect, equivalent to 132 contacts per sq inch

  • 30μ inch gold plated contacts: Long working life & high mating cycles

  • Nickel/Copper plating: Up to 60db EMI shielding typical, depending on frequency of interest
