M28840 Shipboard Connectors
Contact:
Mathew Tharakan
Business Development Manager
(978) 624-3469
mtharakan@amphenolpcd.com
Contact Us to Learn More
Description:

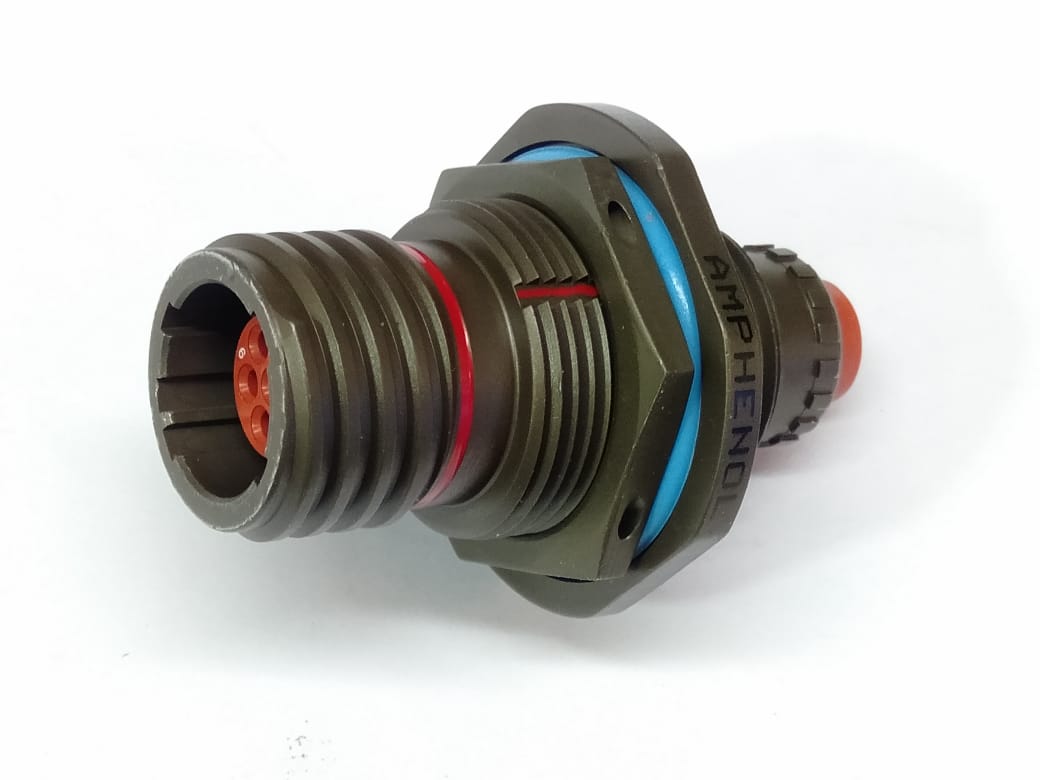

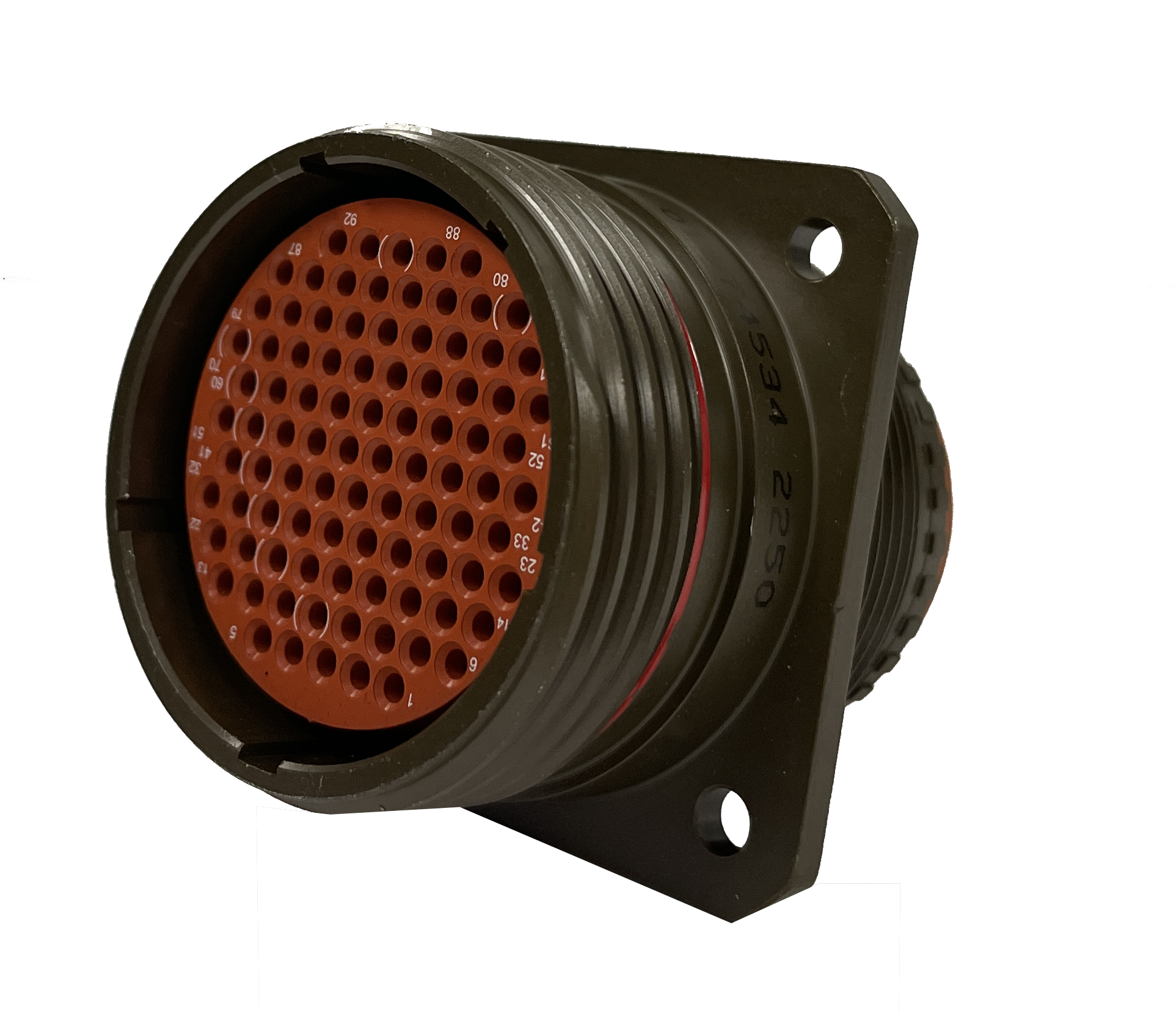

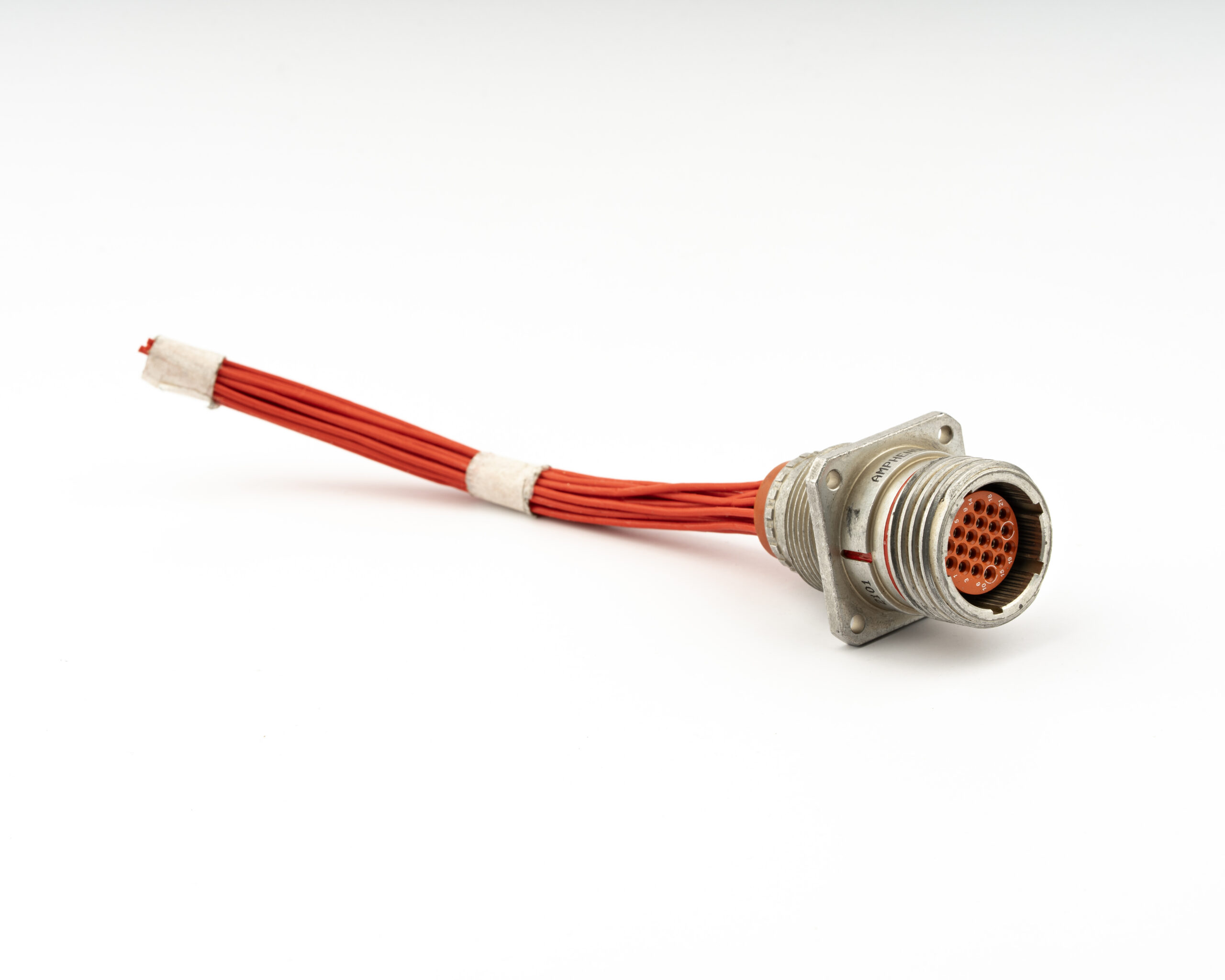

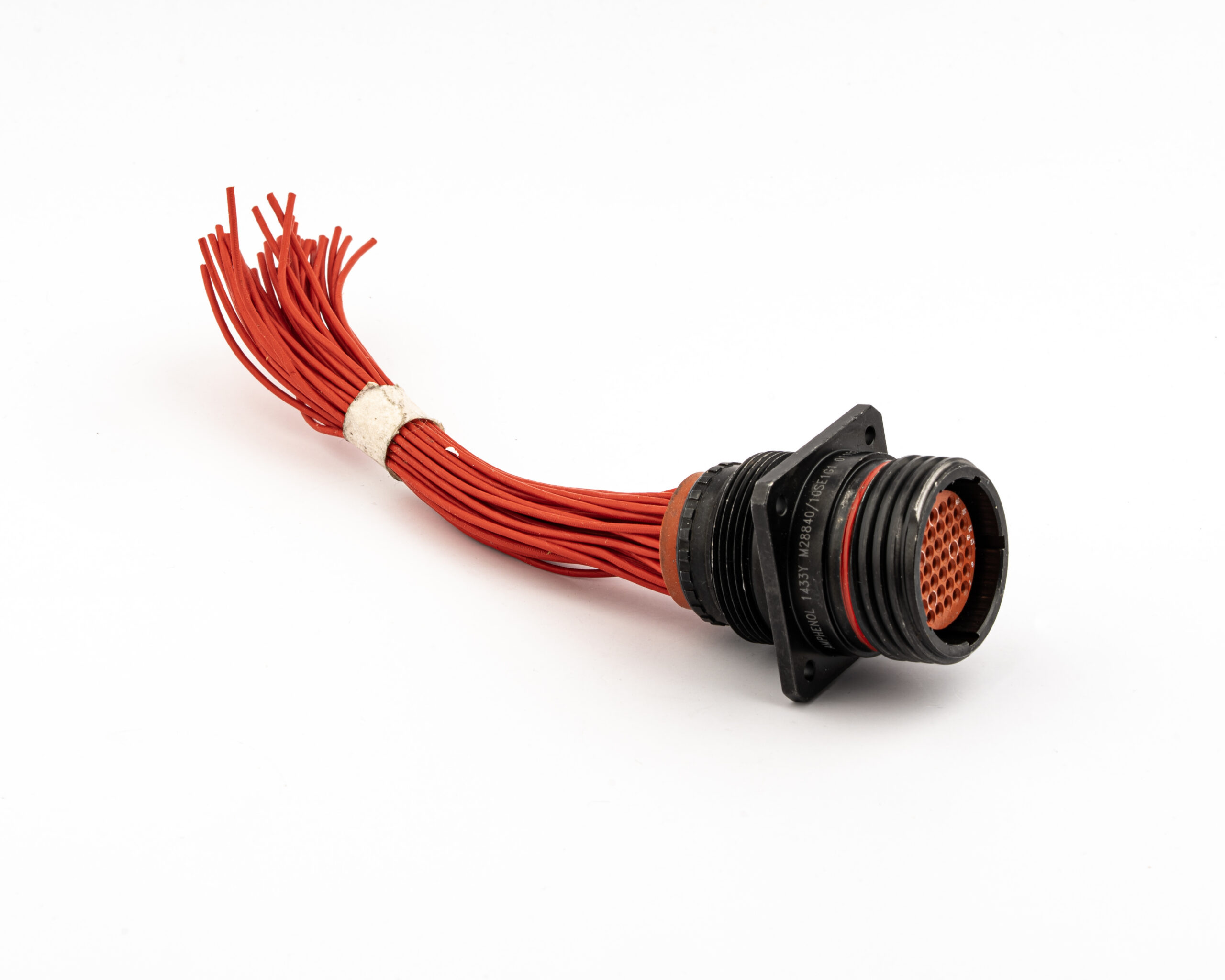

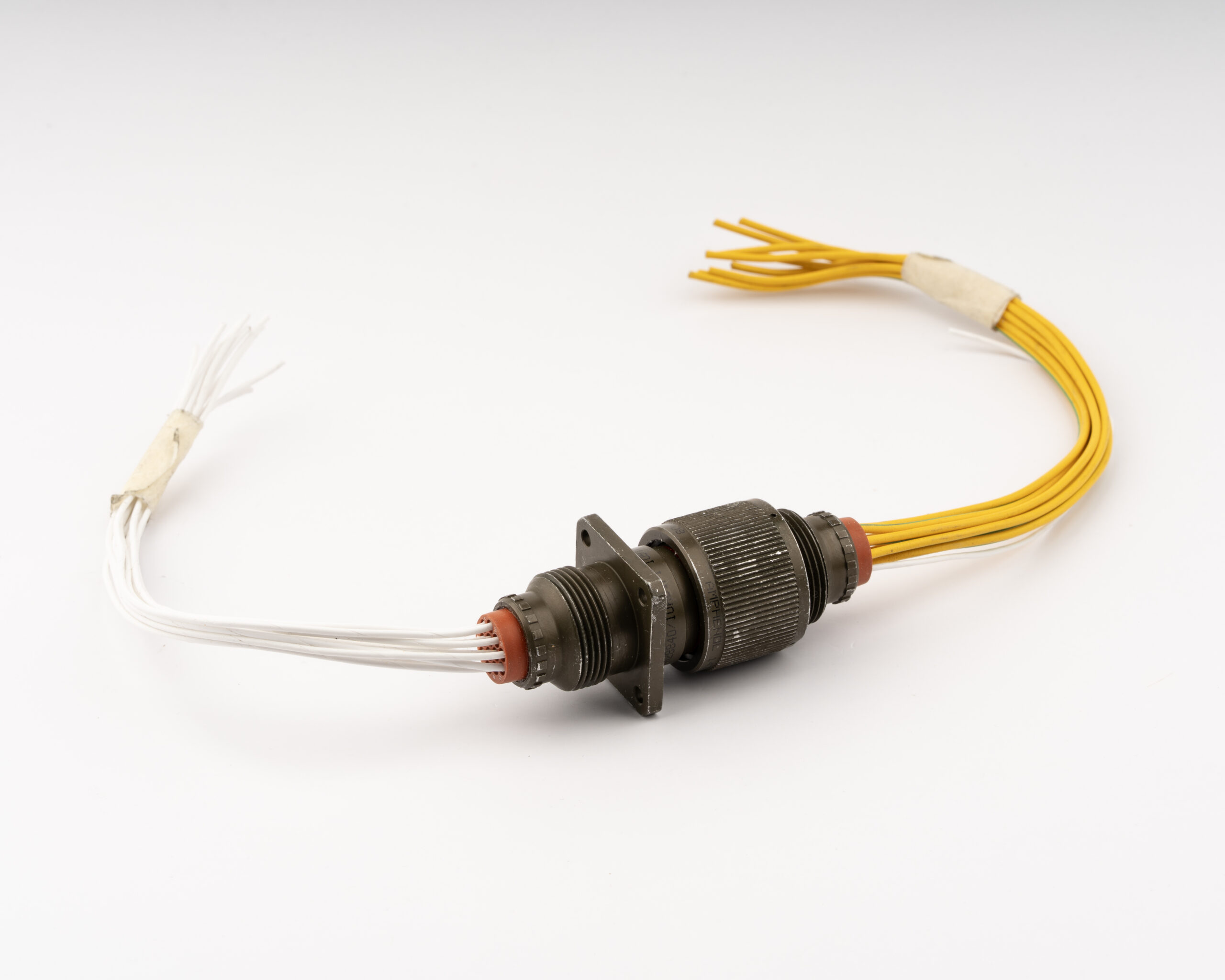

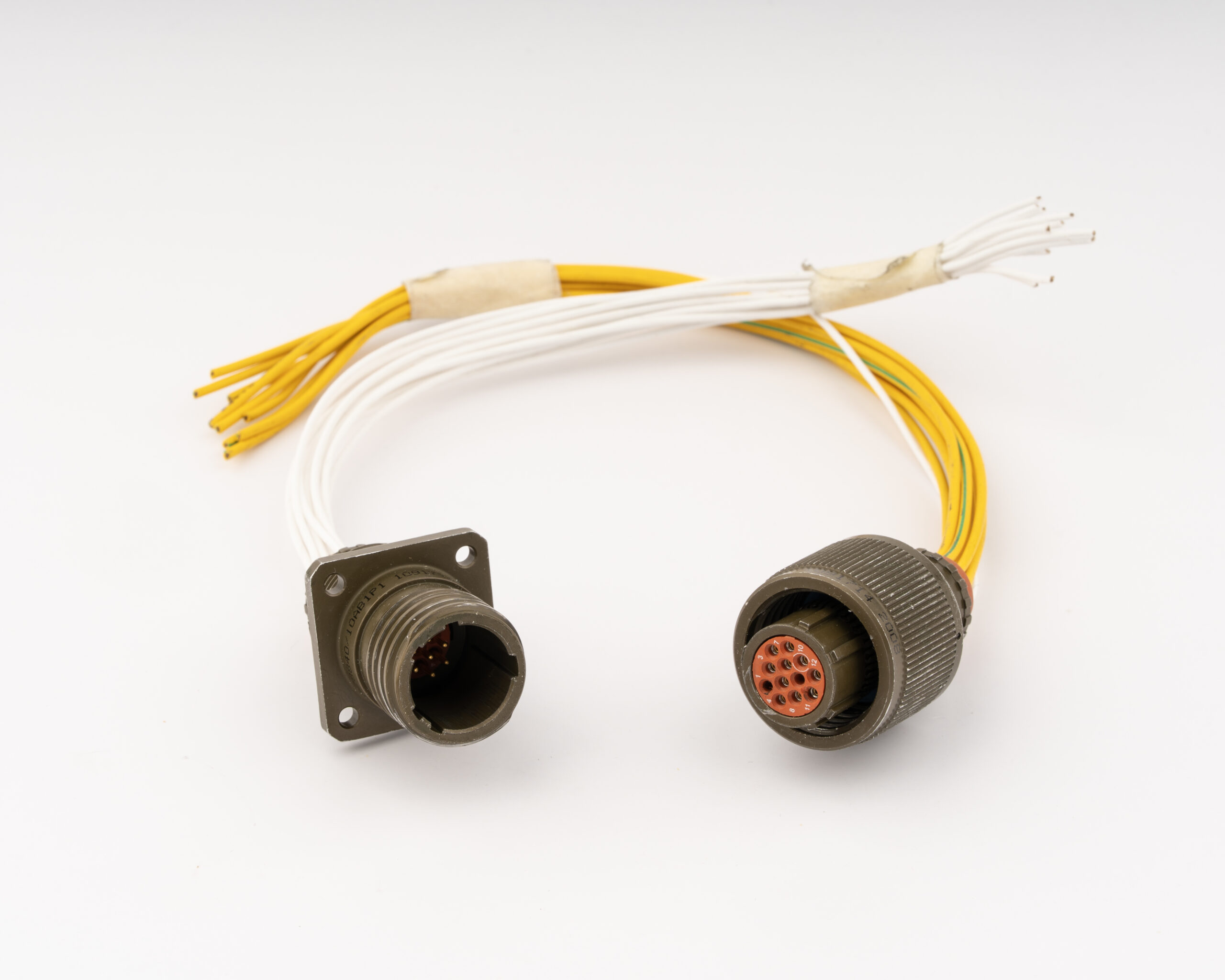

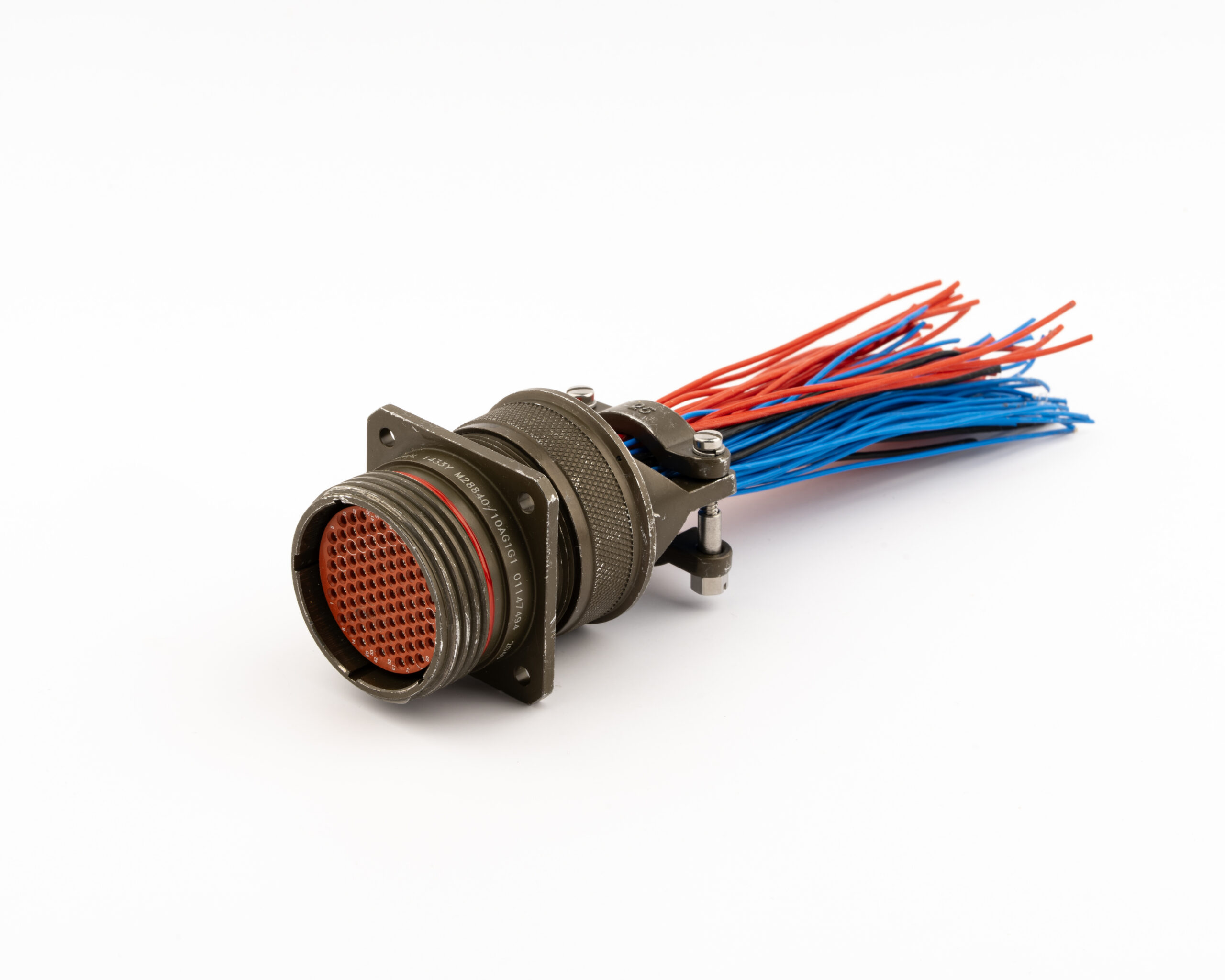

M28840 circular connectors according to MIL-DTL-28840. Shipboard application connectors that are precision-machined, highly reliable, and meet superior mechanical shock performances. High-density connectors designed and tested to withstand extreme environmental conditions and demanding applications. Amphenol also offer the full range of backshells to support this connector series.
Current Rating | Size # 20 contact 20AWG 7.5A, 22AWG 5.0A, 28AWG 1.5A, 30AWG 1.0A |
Test Voltage | 1000 VAC RMS at sea level, test in accordance with EIA-364-20 |
Insulation Resistance | 5000 megohms min. (at ambient temp) per EIA-364-21 |
Contact Resistance | Per SAE-AS39029 |
Operating Temperature | -55° C to +200° C |
Fluid Immersion | Test method EIA-364-10 |
Shock | In accordance with MIL-S-901 grade A |
Vibration | In accordance with EIA-364-28 |
Magnetic Permeability | less than 2.0 μ (Aluminum) ASTM-A342/A342M |
Shells, Coupling Nuts, Jam Nuts | Aluminum Alloy per ASTM B211, or Stainless Steel per AMS-QQ-S-763 |
Contacts | Copper Alloy, 50 microinches Gold plated per ASTM B488 |
Contacts | Type 3, Code C Class 1 over nickel underplate per QQ-N-290 |
Contacts | Class 2 Socket contact hood: Stainless Steel passivated |
Insulators | High Grade Engineering Plastic |
Contact Retention Clip | Beryllium Copper |
Grommet Seal | Blended Elastomer |
Plating | Cadmium, Zinc Nickel & Tin Zinc (Commercial only) |
Catalog M28840 Shipboard Connectors
