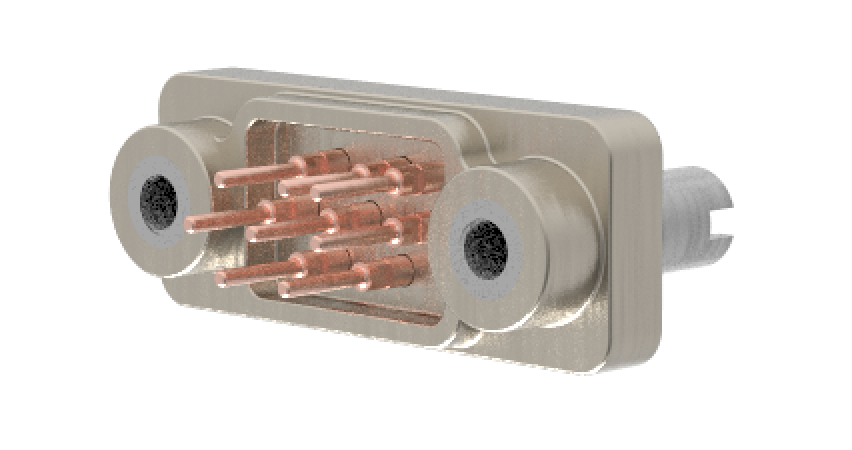

Low Cost MicroD (LCMD) is a family of Micro-D class products that are small, plastic, easy-to-use connectors designed specifically for sensing, command and control applications. LCMD connectors are ideal where M83513 level of performance is required, but customization to application specific requirements is needed. LCMD provides ideal performance in tight spaces. An interfacial seal ensures the contacts are free from dust, moisture and corrosion.

Features & Benefits:

  • Polyethermide Single Piece Housing; High temperature resistance, resistance to a large number of harsh fuels & chemicals, a long working life & high mating cycles

  • 3.0 grams / mated pair; Lighter weight means longer flight times, larger payloads, longer battery life in non-static applications

  • Supports 24 and 26 awg wires; 1a continuous over full voltage and temperature range

  • 0.078” Contact Spacing; Very high density interconnect

  • 50μ inch gold plated contacts; Long working life & high mating cycles

  • Nickel / Copper plating; Up to 60db EMI shielding typical, depending on frequency of interest

  • 2 Key positions; An “A” and “B” Key position helps provide ease of installation and helps ensure the correct cable goes with the correct mating connector

  • Designed to MIL-DTL-83513; Meets all testing requirements.
